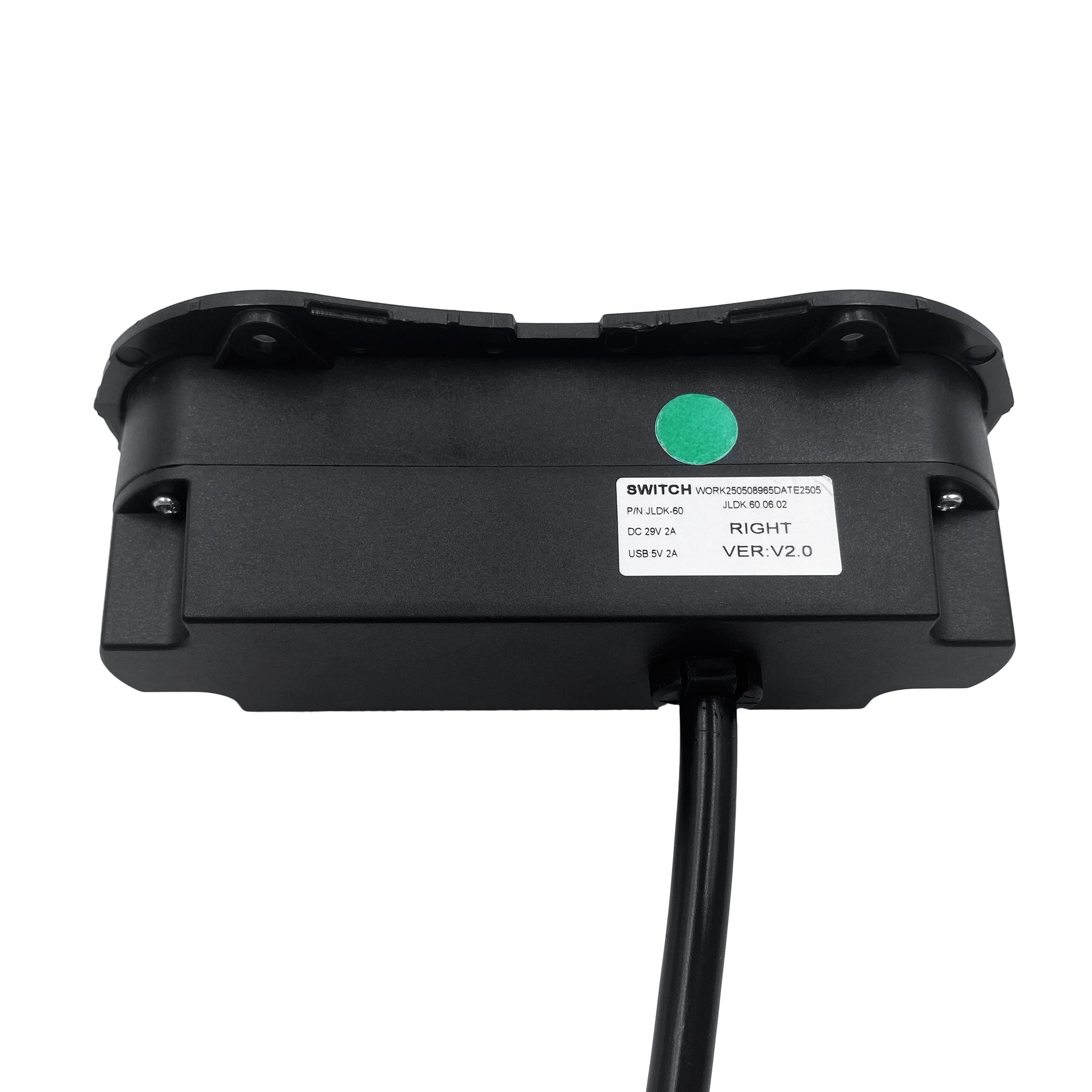

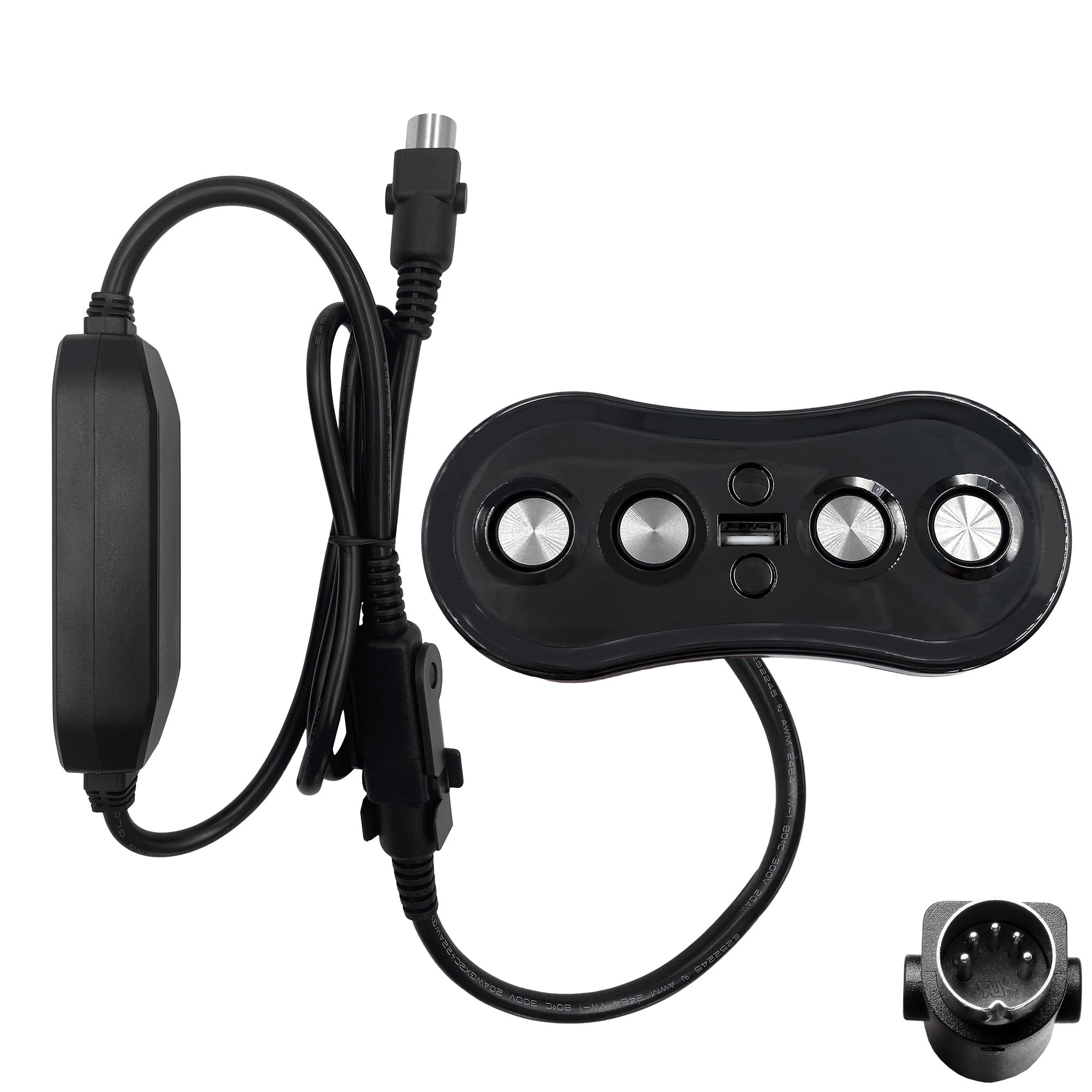

Fruhdi 6 Button 5 Pin Switch Controller Control Model JLDK.60.06.02 with USB for Electric Sofa Power Recliner Lift Chair

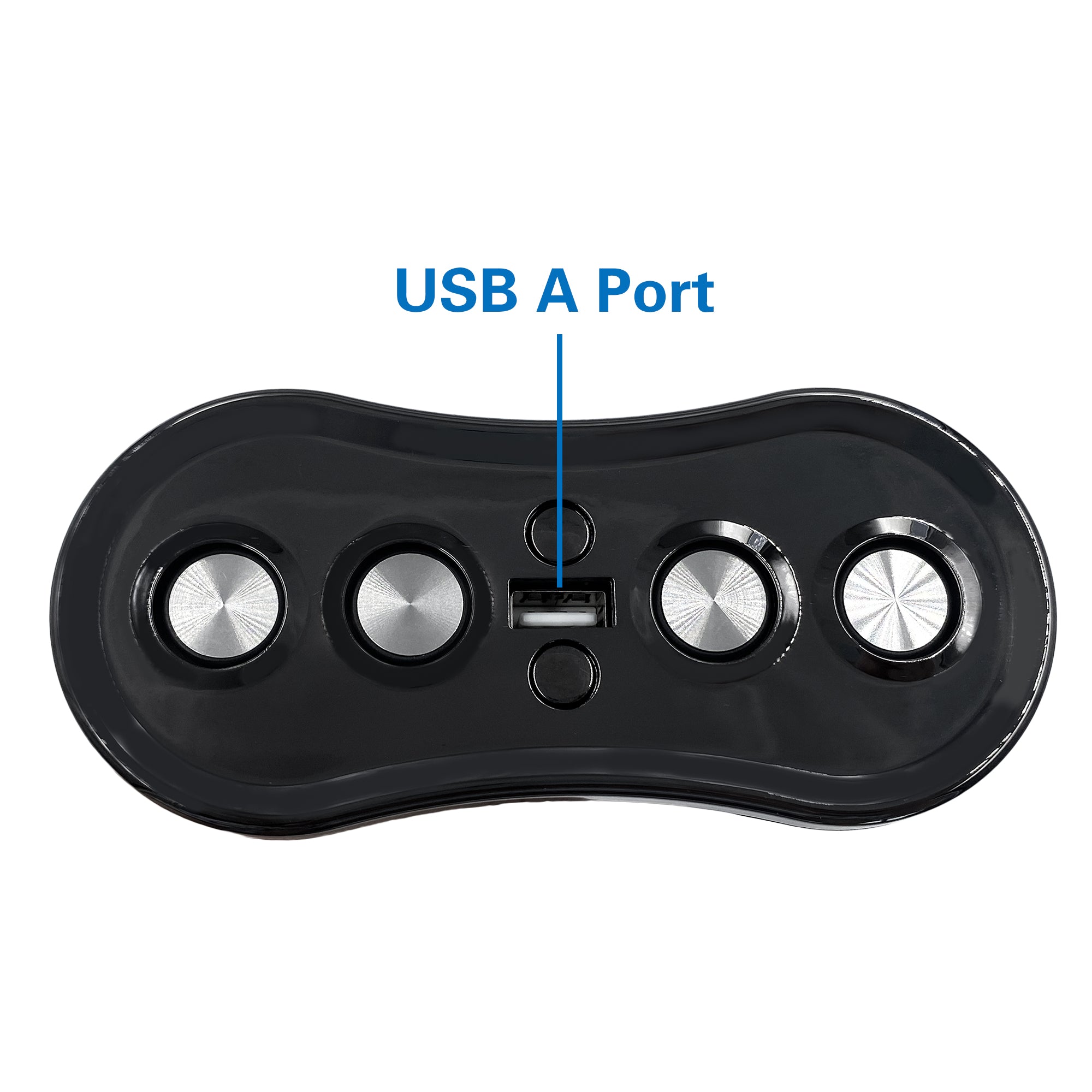

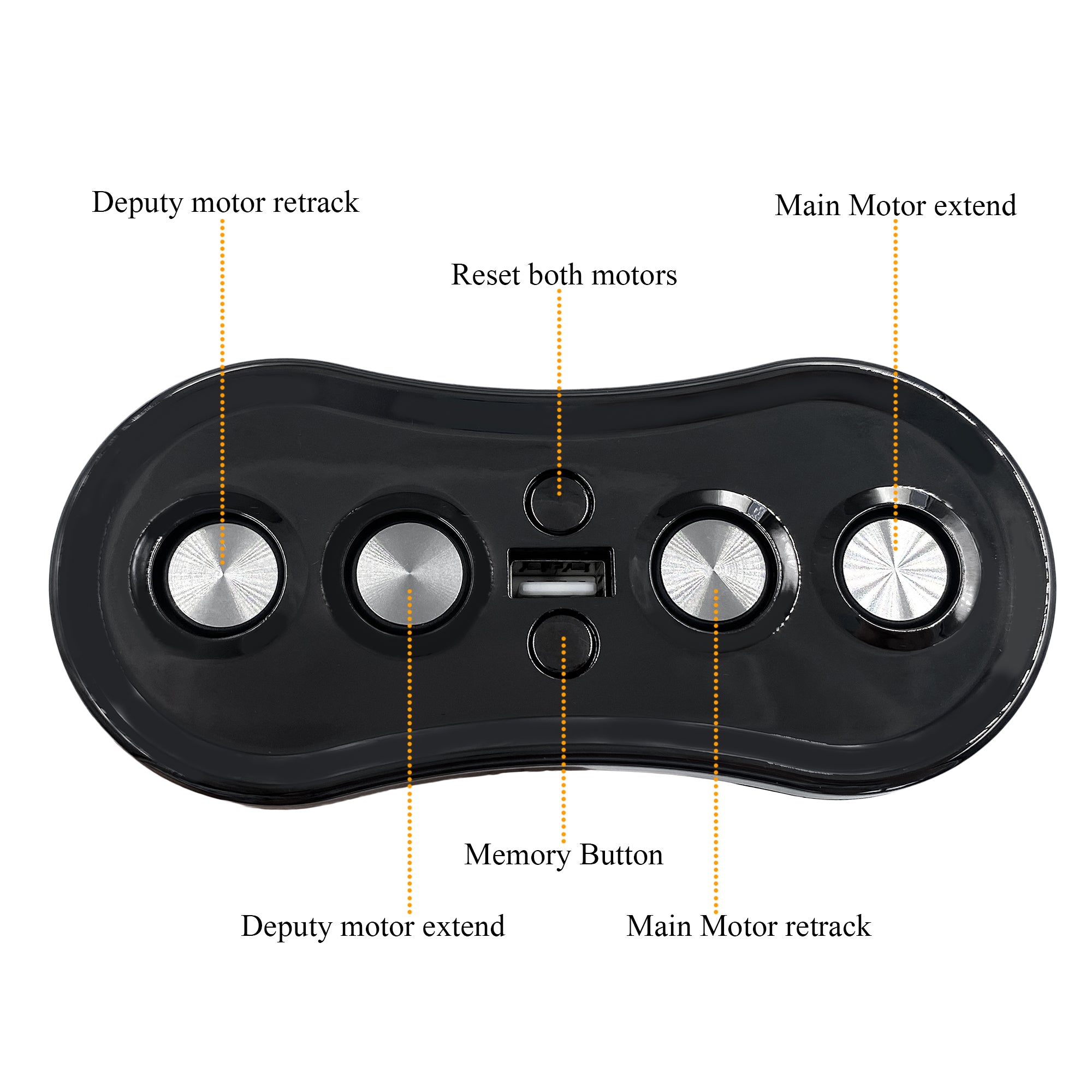

This is 6 button 5 pin switch model JLDK.60.06.02 with USB, you can charge your phone. It is suitable for recliners with 2 linear actuator motors. The switch has memory button and reset button. Memory button, press and hold this button for 3 seconds, when you see the back lights flash for 3 times, the postion is memorized. Short pressing this button will turn your chair into the memory postion. Reset button, press the button for a long time to reset.

Please Note:

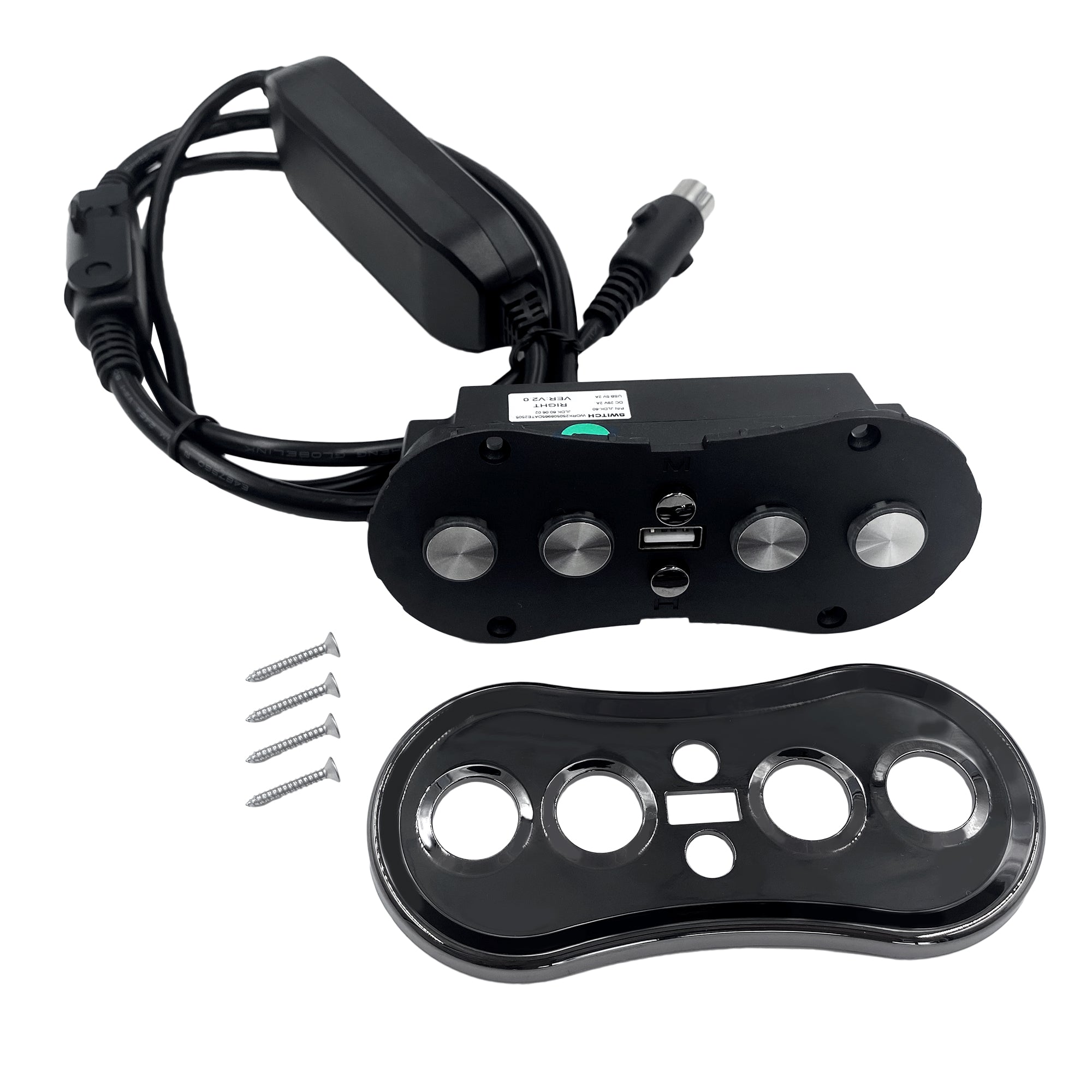

The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.

When you are installing the switch, do not install the plastic cover until everything is done.

After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.

Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.

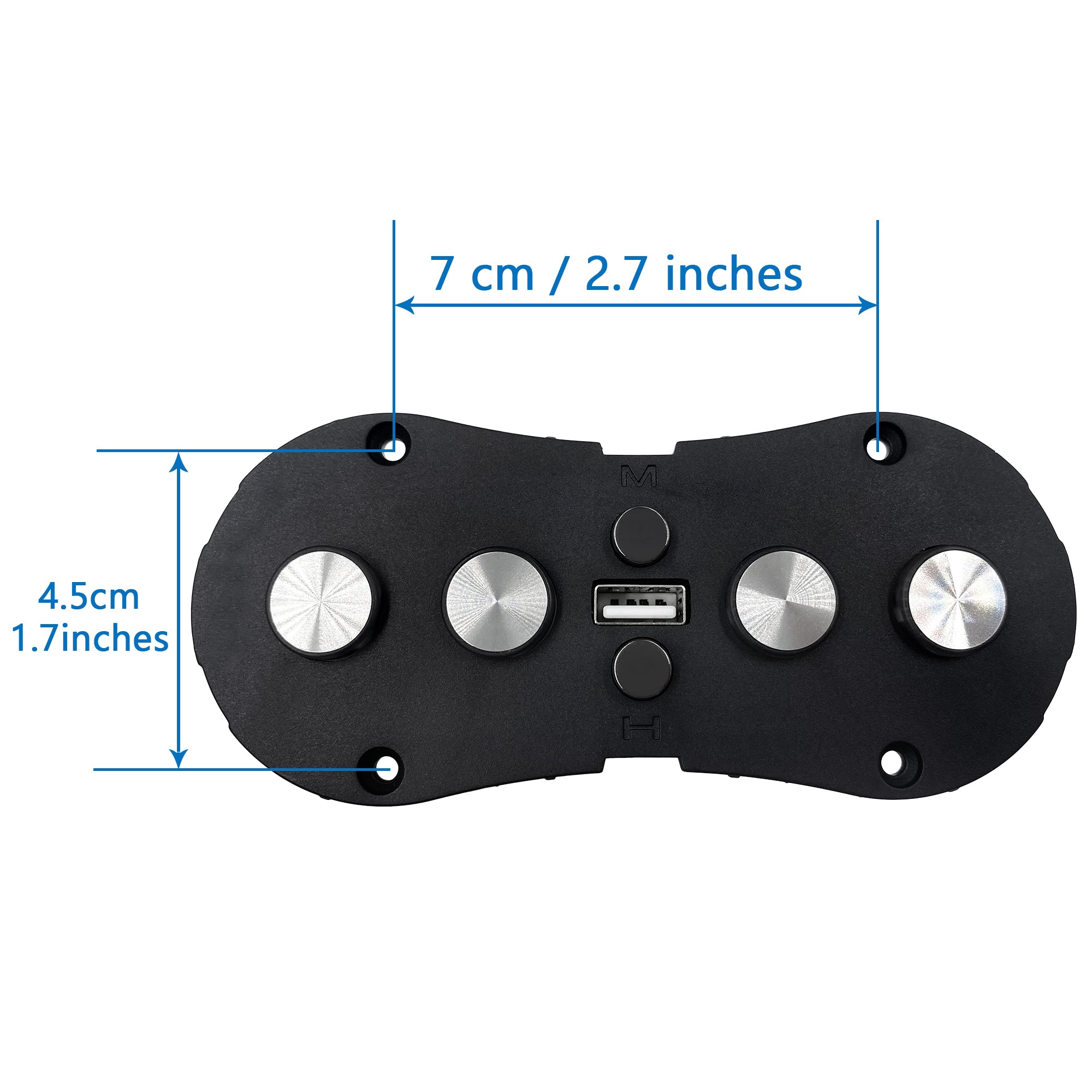

Package Dimensions: 9.00 x 7.00 x 2.00 inches

Package Weight: 0.70 lb
