Fruhdi Electric Sofa Lift Chairs Power Recliner Motor Model JLDQ.18.133.226D02 Linear Actuator Replacement
- This is Power Recliner Lift Chair Linear Actuator Motor Model JLDQ.18.133.226D02 Replacement
- The Motor can replace Motor Model JLDQ.18.133.226D02
- Minimum install size: 133 mm/5.24 inches, Stroke: 226 mm/8.90 inches

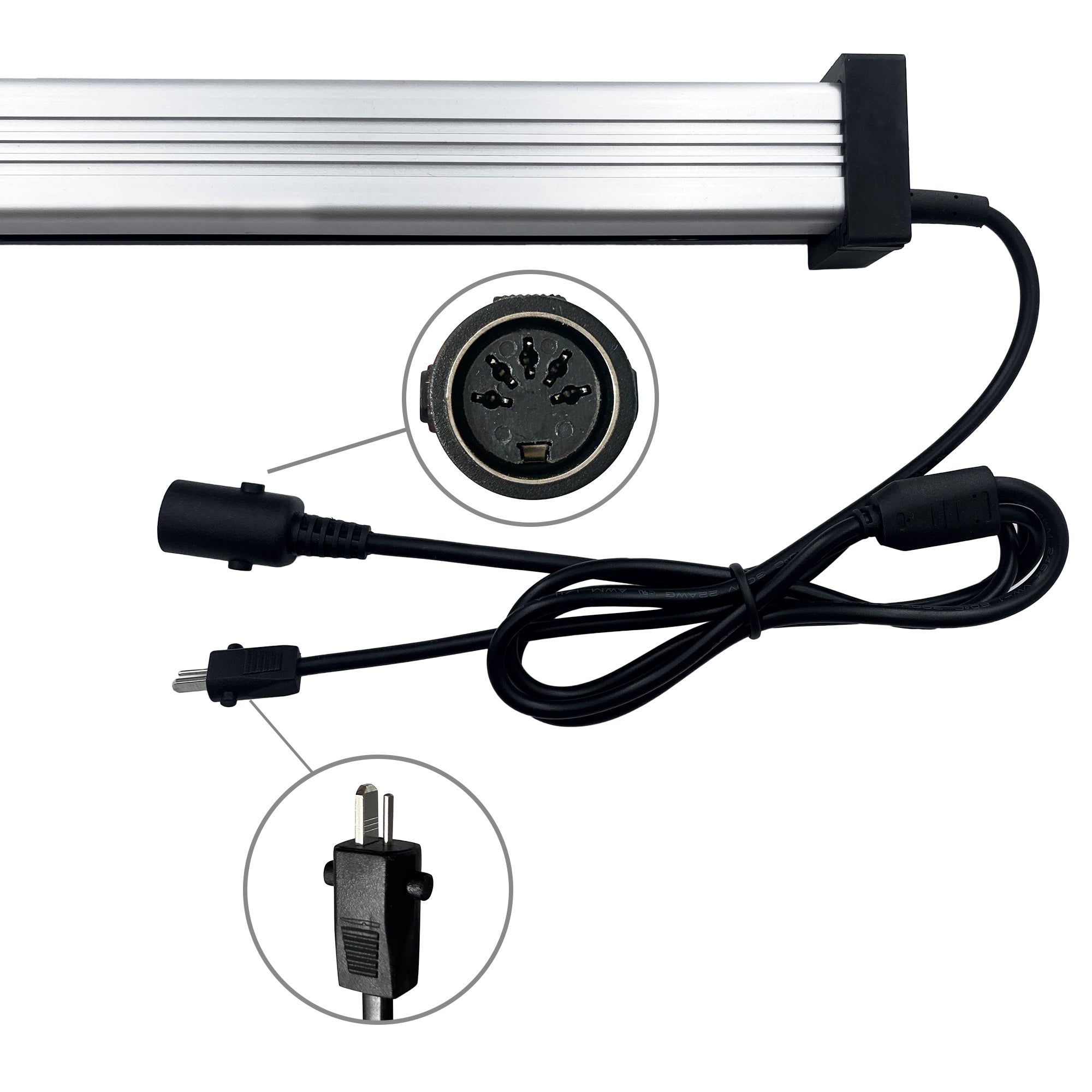

- 2 Pin Flat Round Male Plug Power Transformer Connection, 5 Pin Female Plug Hand Control Connection
- Check Label and also troubleshoot the switch/remote or power supply before ordering the motor
- $99.99
- $99.99
- Unit price
- per

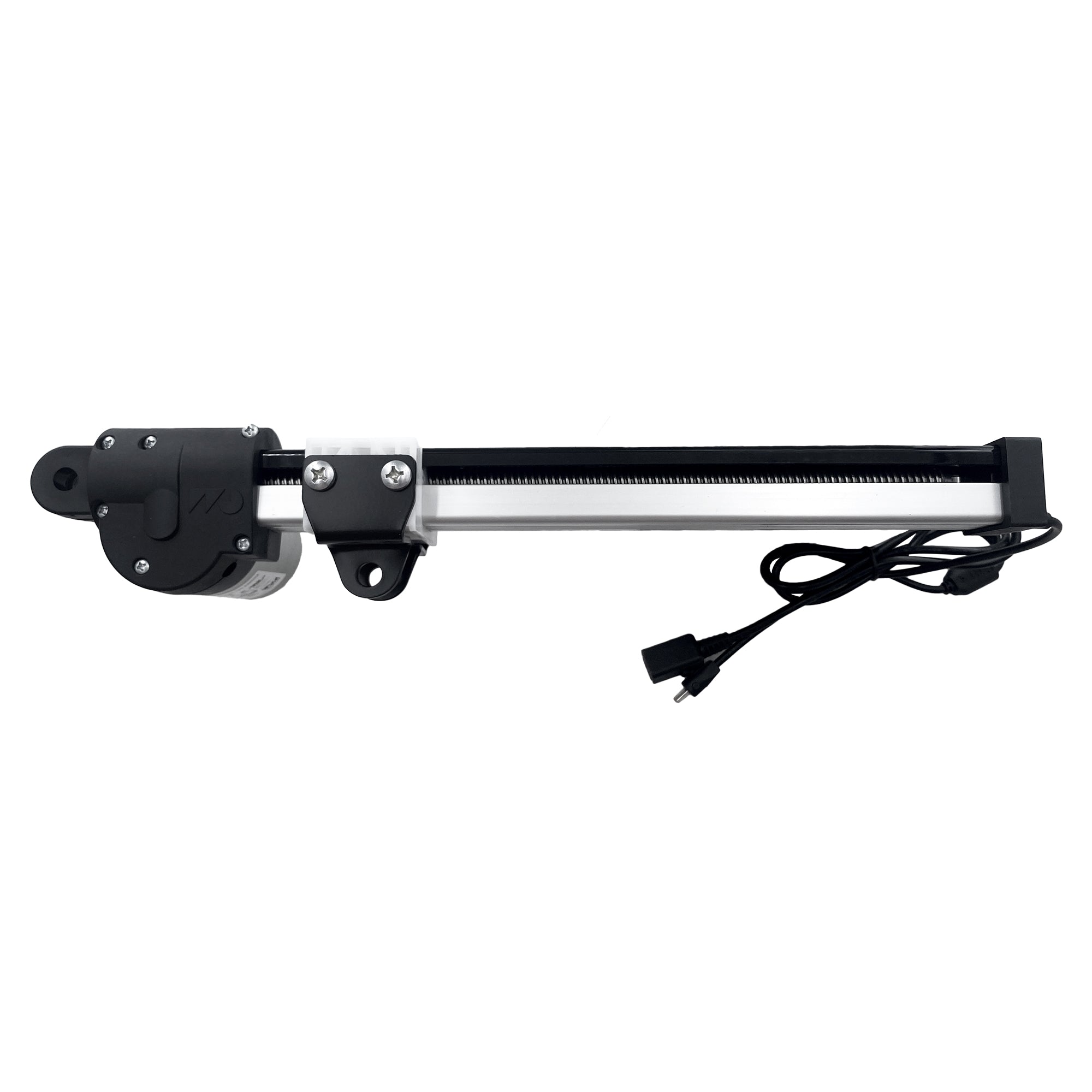

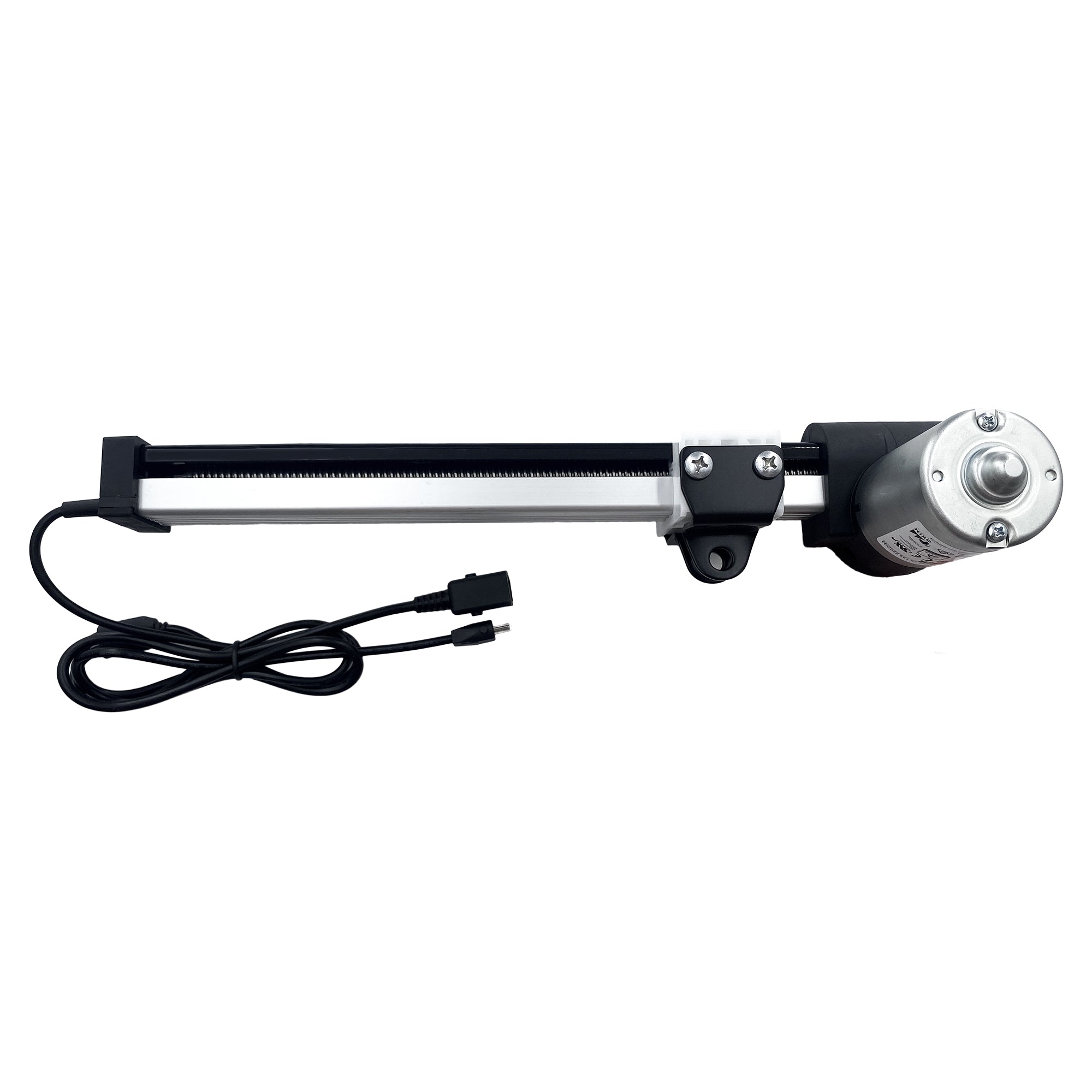

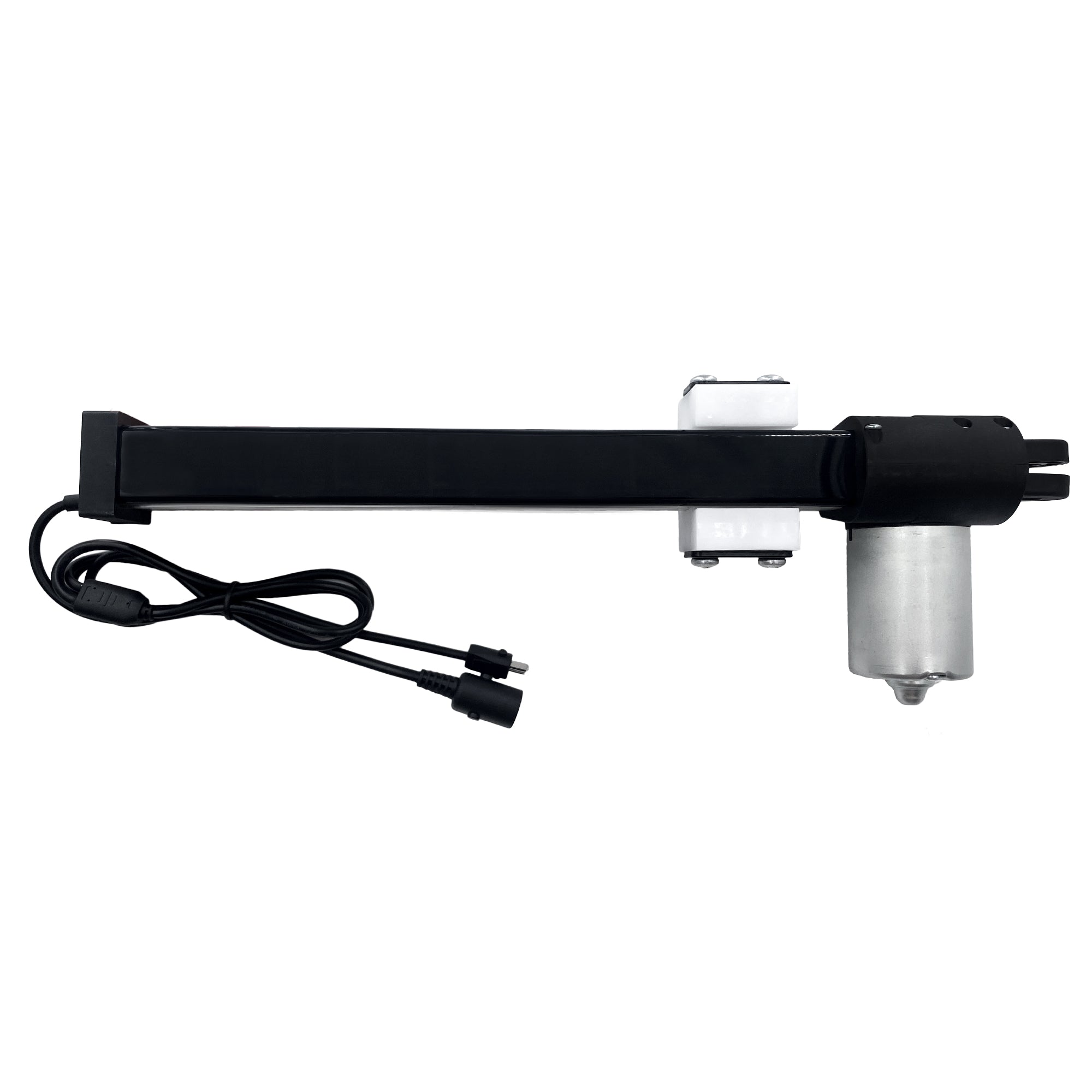

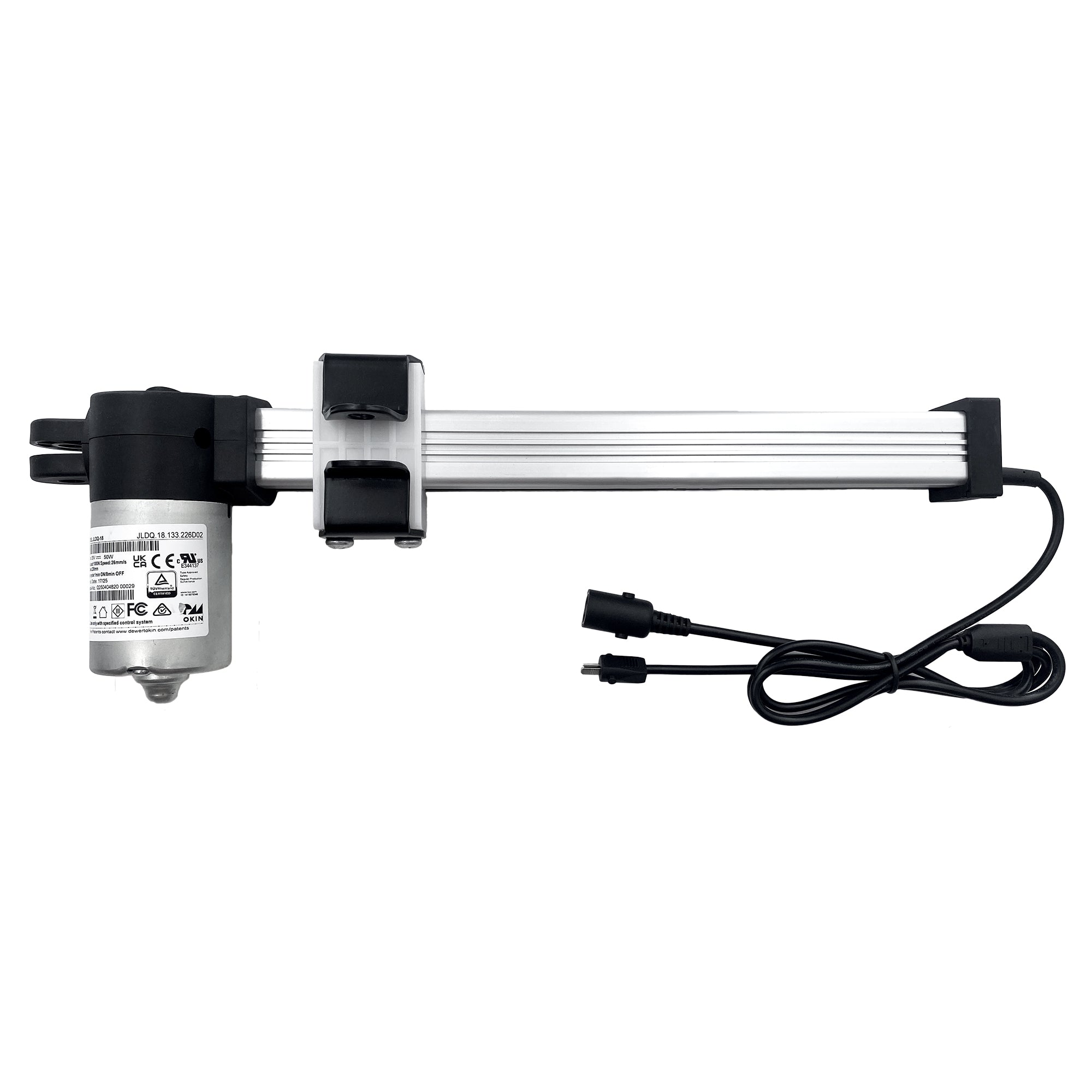

This is power recliner okin motor model JLDQ.18.133.226D02 replacement. It has 2 cables, the 2 pin flat round male plug connects to power transformer and the 5 pin female plug connects to hand control. If you have any further questions, please feel free to contact us.
Technical data:

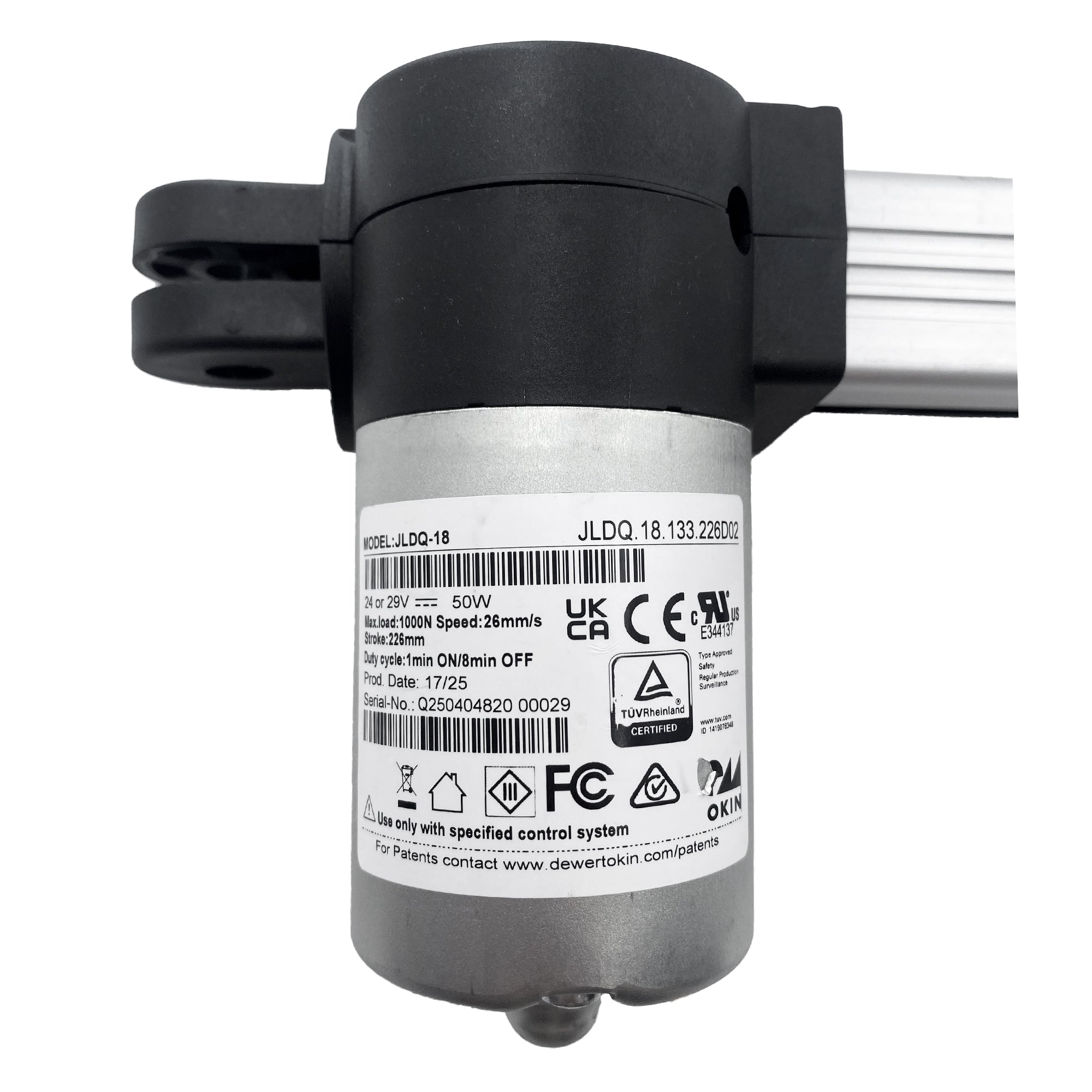

Model: JLDQ.18.133.226D02
Minimum install size: 133 mm/5.24 inches
Stroke: 226 mm/8.90 inches
Max. Load: 1000N
Speed: 26 mm/s
Package Dimensions: 24.9 x 6.9 x 4.3 inches;
Package Weight: 3.60 lb
This is power recliner okin motor model JLDQ.18.133.226D02 replacement. It has 2 cables, the 2 pin flat round male plug connects to power transformer and the 5 pin female plug connects to hand control. If you have any further questions, please feel free to contact us.
Technical data:
Model: JLDQ.18.133.226D02
Minimum install size: 133 mm/5.24 inches
Stroke: 226 mm/8.90 inches
Max. Load: 1000N
Speed: 26 mm/s
Package Dimensions: 24.9 x 6.9 x 4.3 inches;
Package Weight: 3.60 lb
