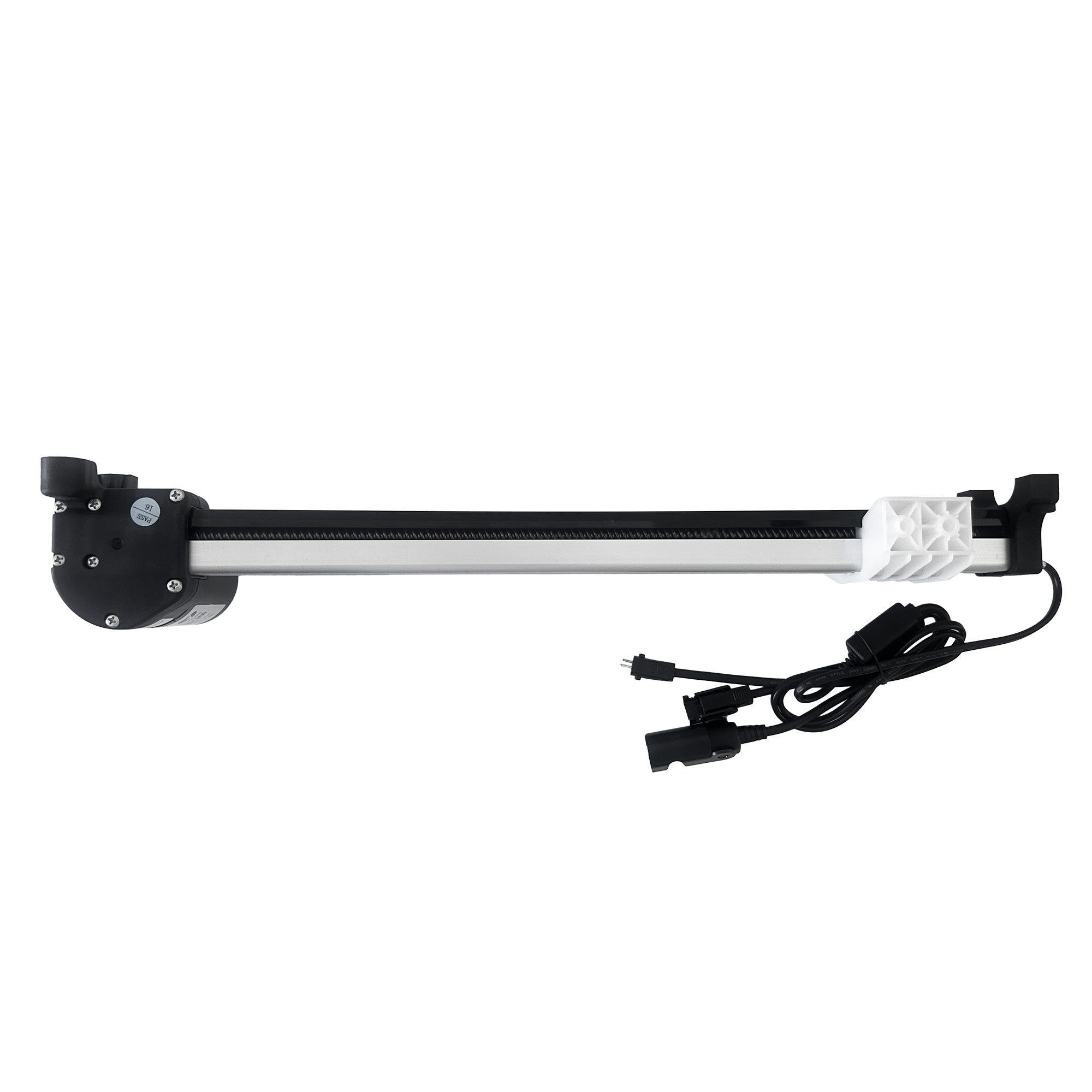

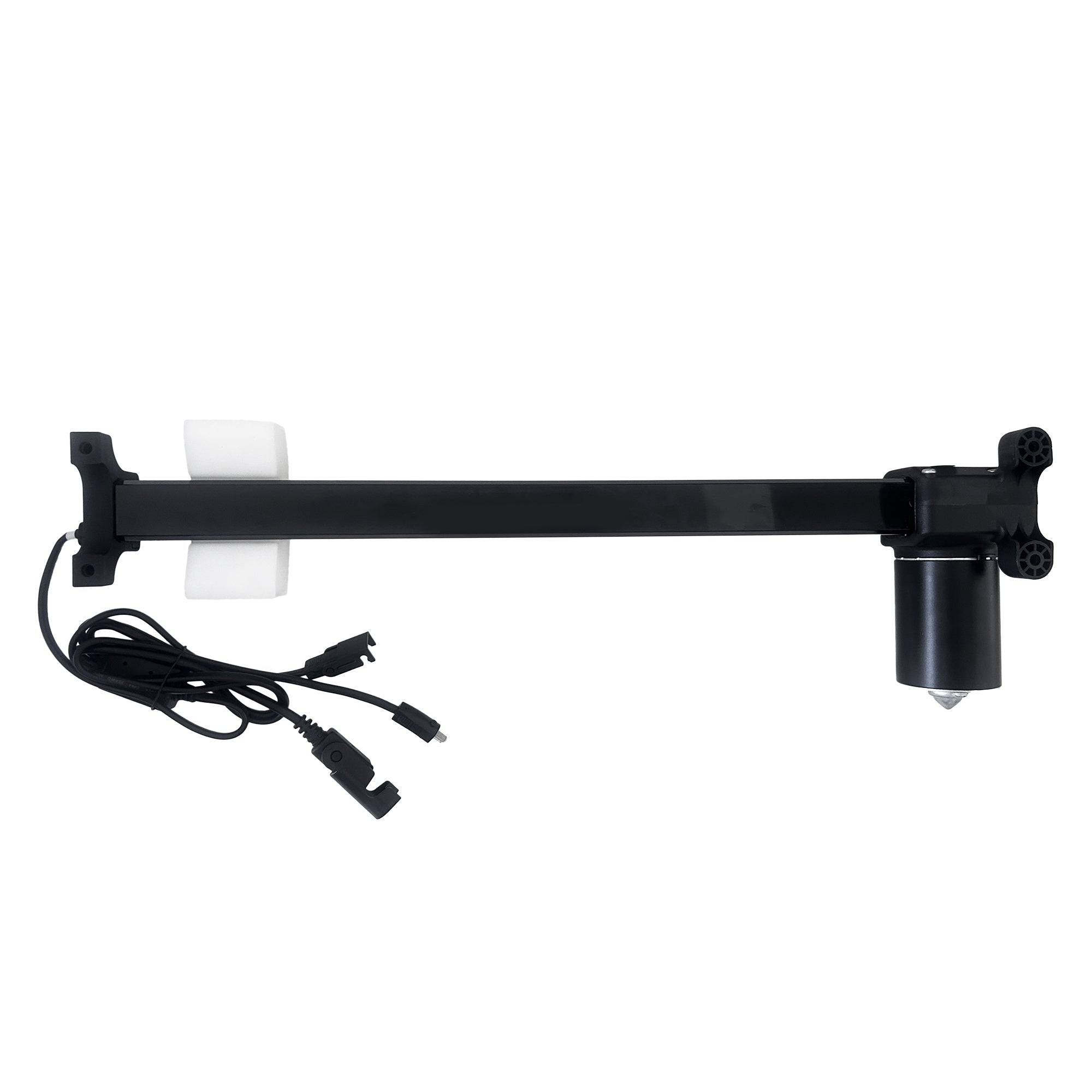

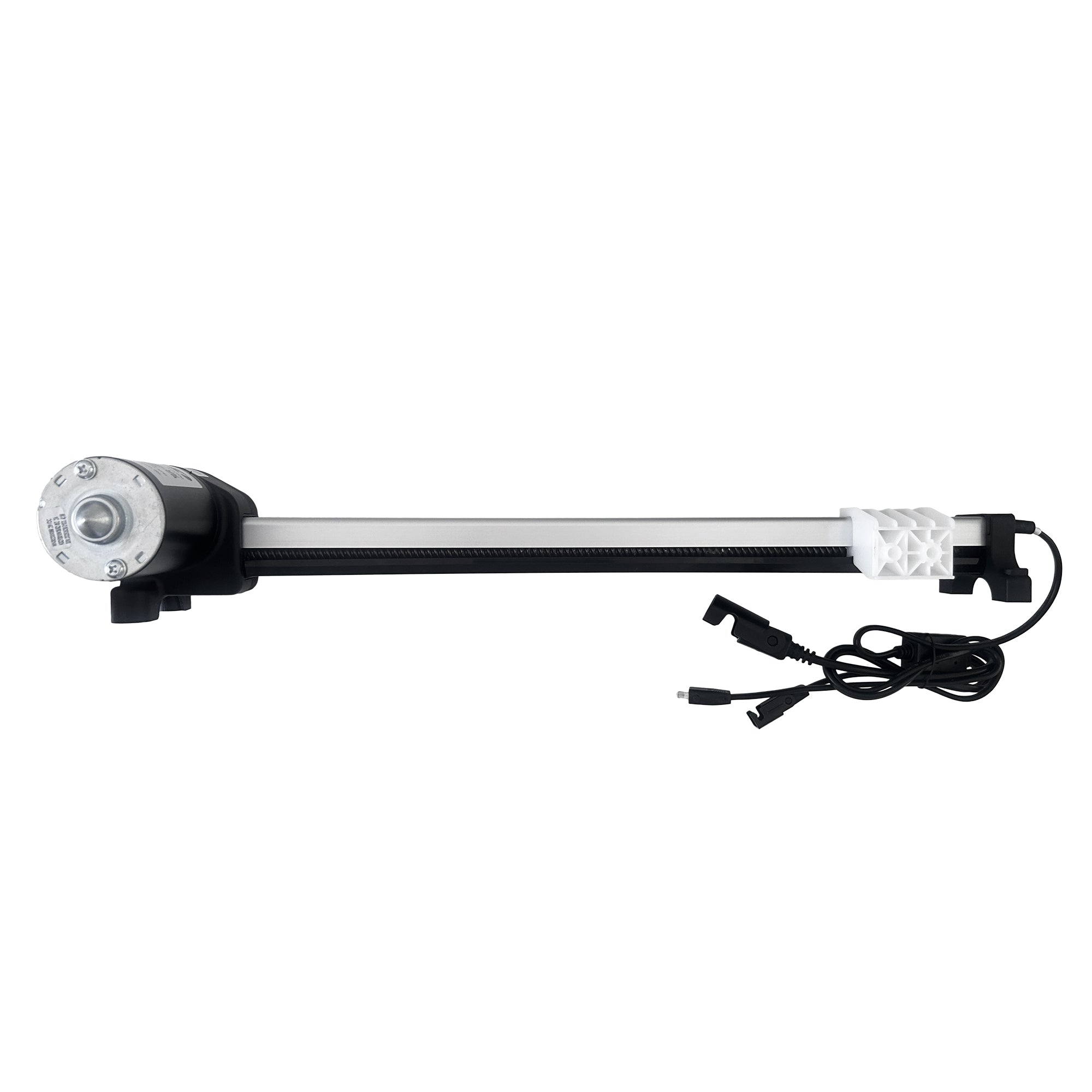

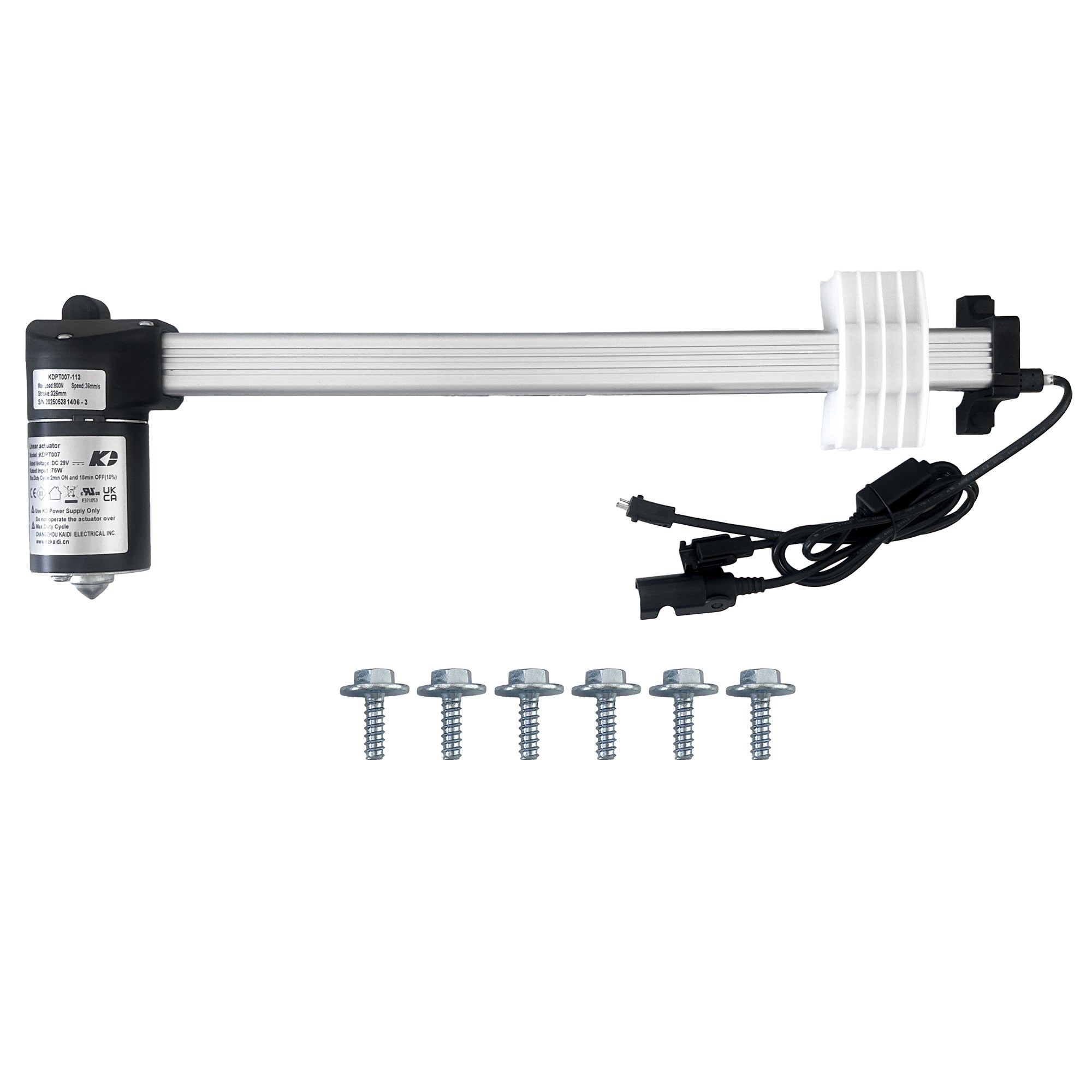

Fruhdi Linear Actuator Kaidi Model KDPT007-113 Power Recliner Lift Chairs Motor Replacement
- OEM Kaidi Power Recliner Lift Chairs Motor Actuator Model KDPT007-113
- The motor replaces Kaidi Model KDPT007-14, KDPT007-59, KDPT007-12 and KDPT007N-11, Please check your label before ordering

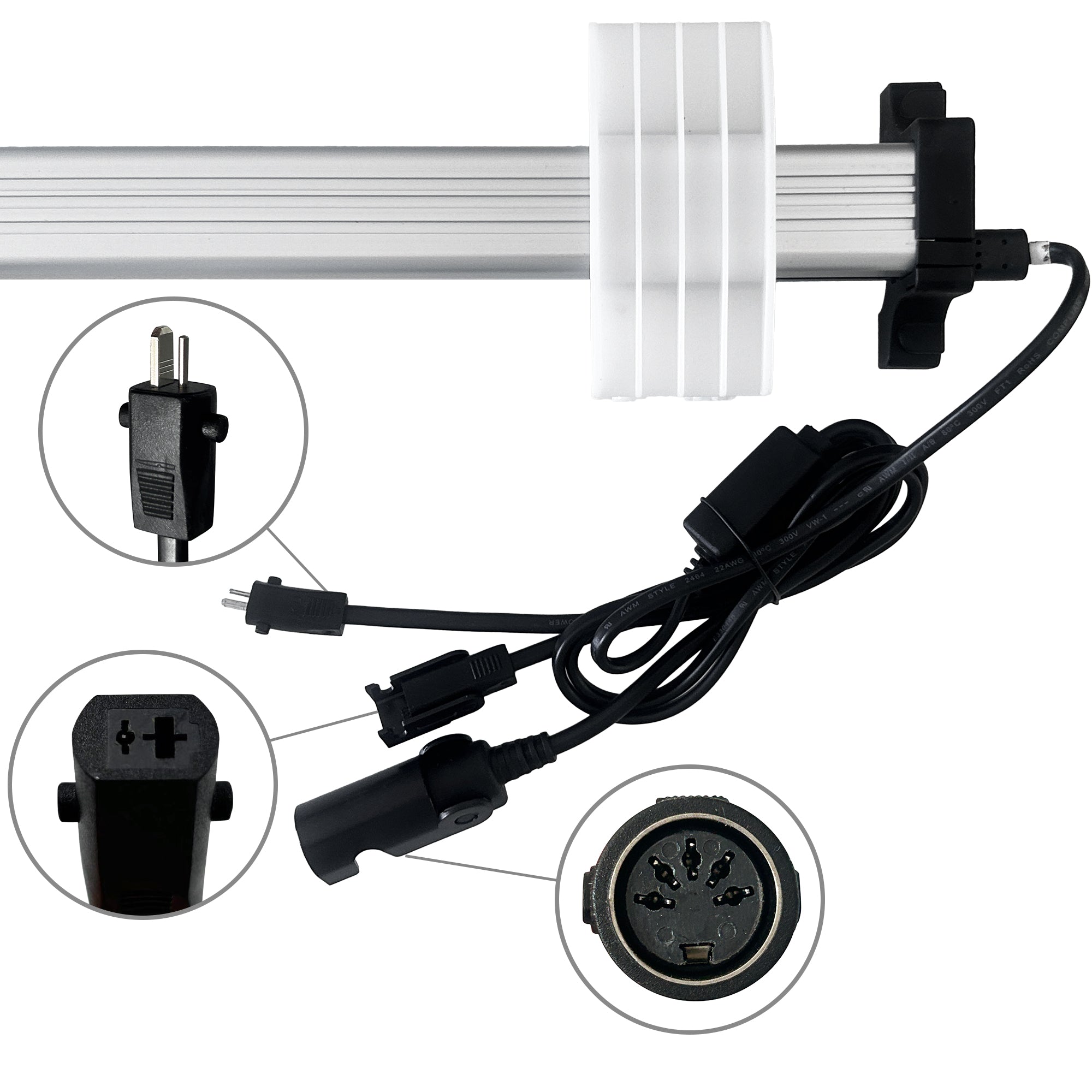

- 2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection

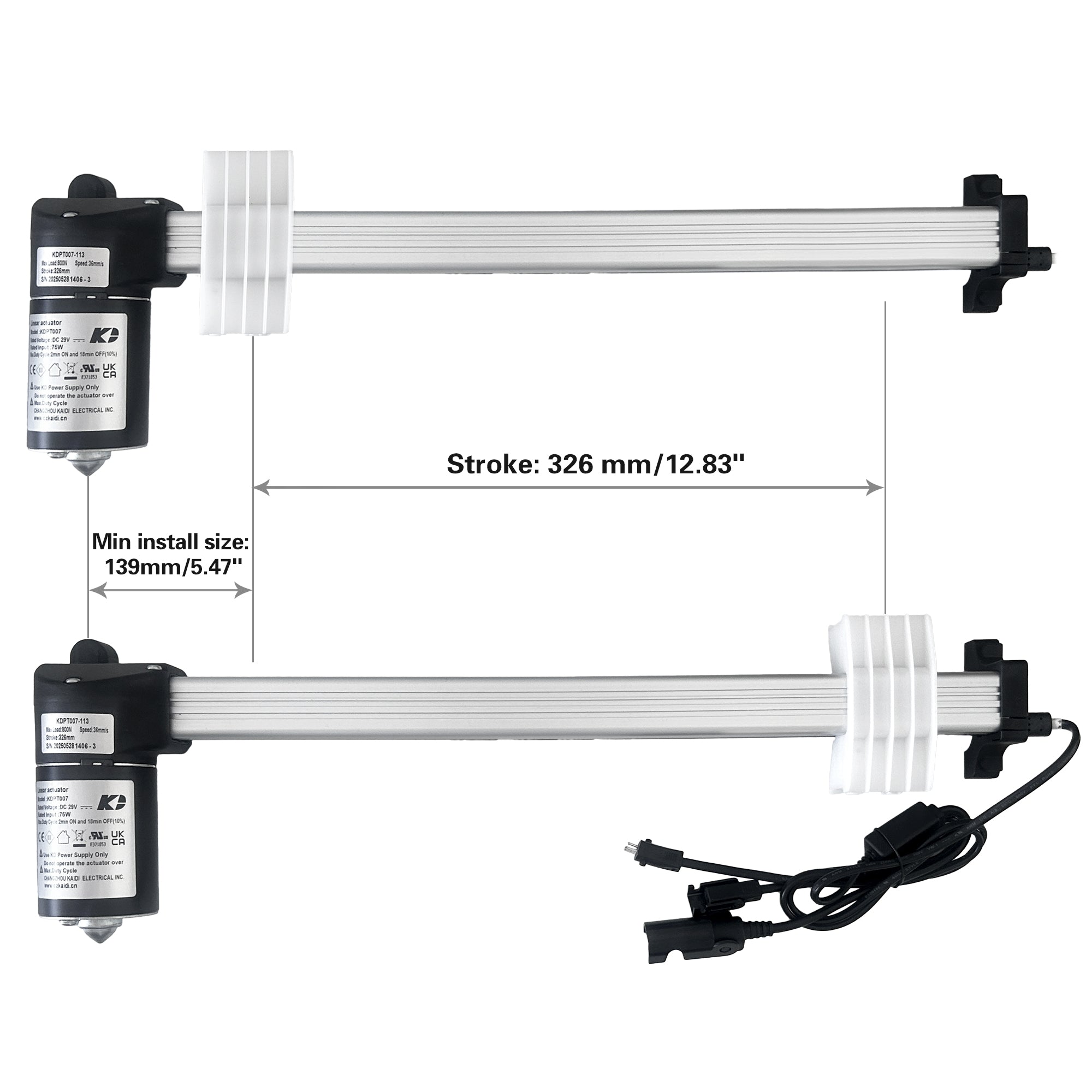

- Stroke: 326mm/12.83, Minimum install dimension: 139mm/5.47inches
- Easy to install, Speed: 36mm/s, Max.load: 800N
- $104.99
- $104.99
- Unit price
- per
This Motor Kaidi Linear Actuator Model KDPT007-113 replaces Kaidi Model KDPT007-14, KDPT007-59, KDPT007-12, KDPT007N-11 and many different brands and models. 2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection. Please check your label before ordering. Should you have any question, feel free to contact us.

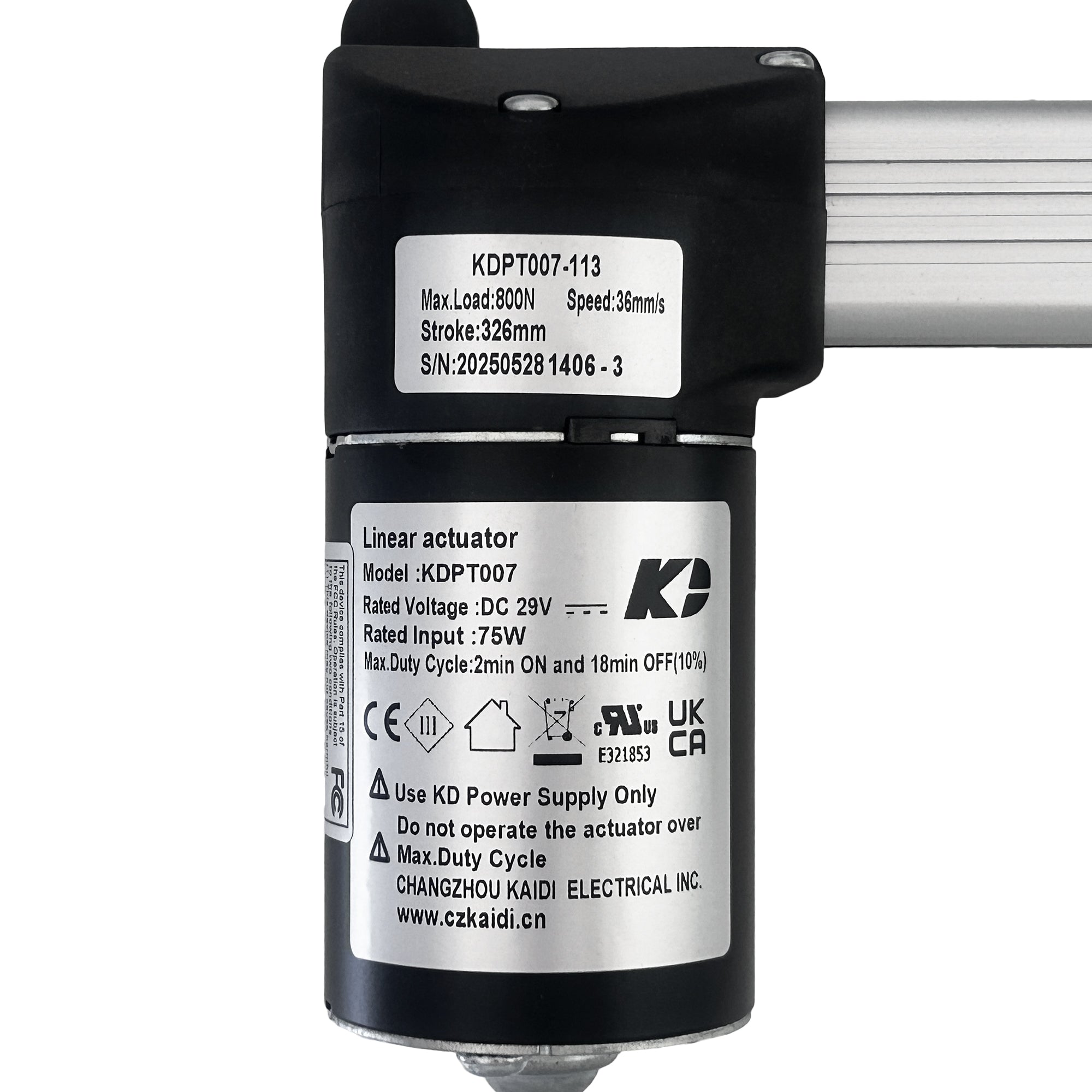

Technical data:
Model: KDPT007-113
Stroke: 326mm/12.83inches
Minimum Install Dimension: 139mm/5.47inches
Speed: 36mm/s
Rated Voltage: DC 29V
Reted Input: 75W
Max.load: 800N
Package Dimensions：25 x 6.75 x 4 inches
Item Weight：4.9lb
This Motor Kaidi Linear Actuator Model KDPT007-113 replaces Kaidi Model KDPT007-14, KDPT007-59, KDPT007-12, KDPT007N-11 and many different brands and models. 2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection. Please check your label before ordering. Should you have any question, feel free to contact us.
Technical data:
Model: KDPT007-113
Stroke: 326mm/12.83inches
Minimum Install Dimension: 139mm/5.47inches
Speed: 36mm/s
Rated Voltage: DC 29V
Reted Input: 75W
Max.load: 800N
Package Dimensions：25 x 6.75 x 4 inches
Item Weight：4.9lb
