Fruhdi Power Recliner Lift Chairs Electric Sofa Okin Motor Model JLDQ-11 JLDQ.11.156.204D Linear Actuator Kit Replacement

This motor can replace JLDQ.11.156.204D and 204D02/D04/D05/D05-JY/D06/D09, and JLDQ.11.156.204F/N series. A little difference may in plug location but not affect the function and use. Please check your motor brand and model first. It has 2 Connectors, 2 Pin Power Transformer Connection, 5 Pin Hand Control Plug Connection. Application in electric sofa, massage chair and etc, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.

Please note: if you are not sure if this the correct replacment, please send us a photo of your original pictures and we can tell you if this is the correct replacement.

Technical data:

Manufacturer: Okin

Model: JLDQ.11.156.204D

Stroke: 204 mm/ 8.03 inches

Minimum install dimension: 156 mm/6.14 inches

Duty Cycle: 1 min ON/ 8 min OFF

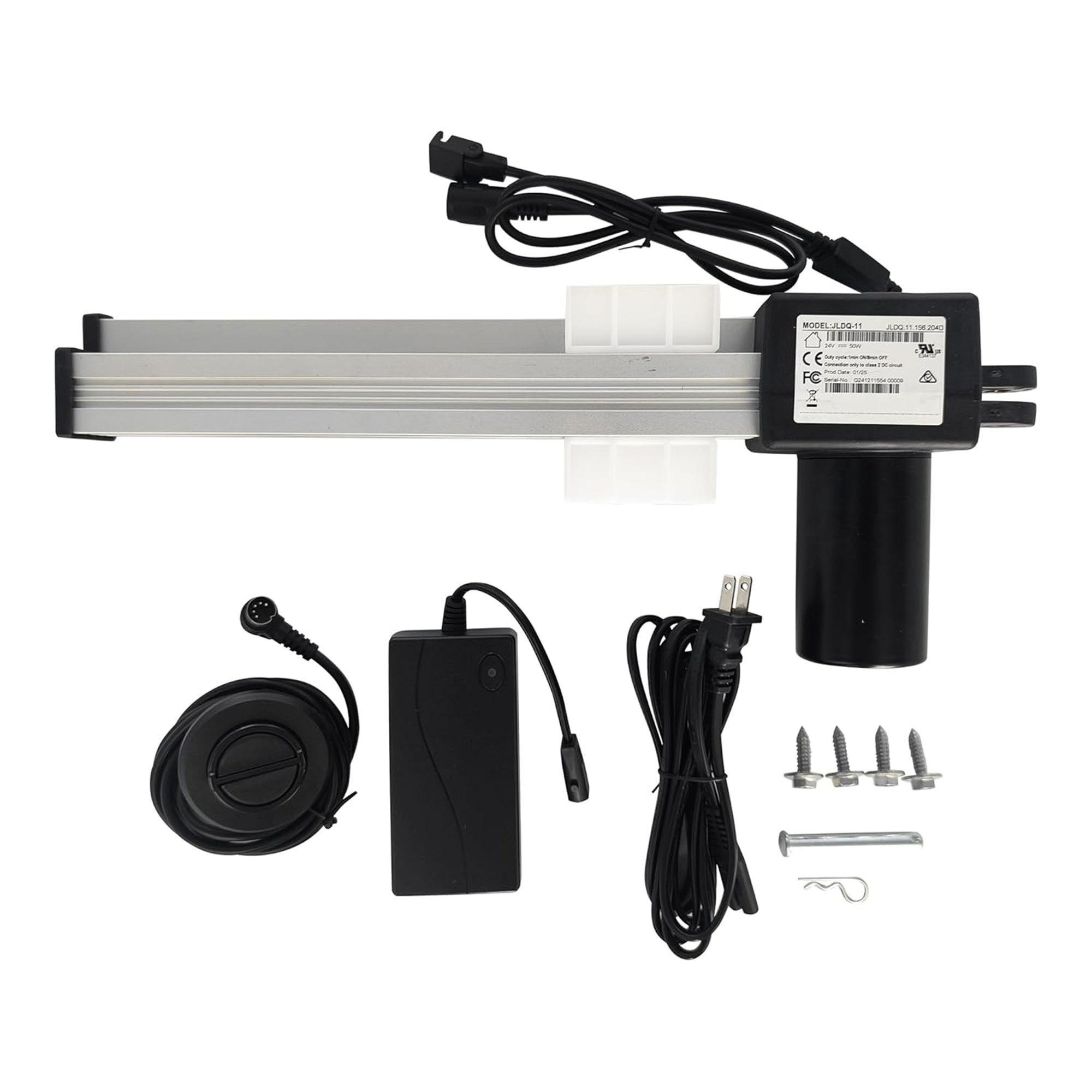

Package included :

1x Power Recliner Motor Model JLDQ.11.156.204D

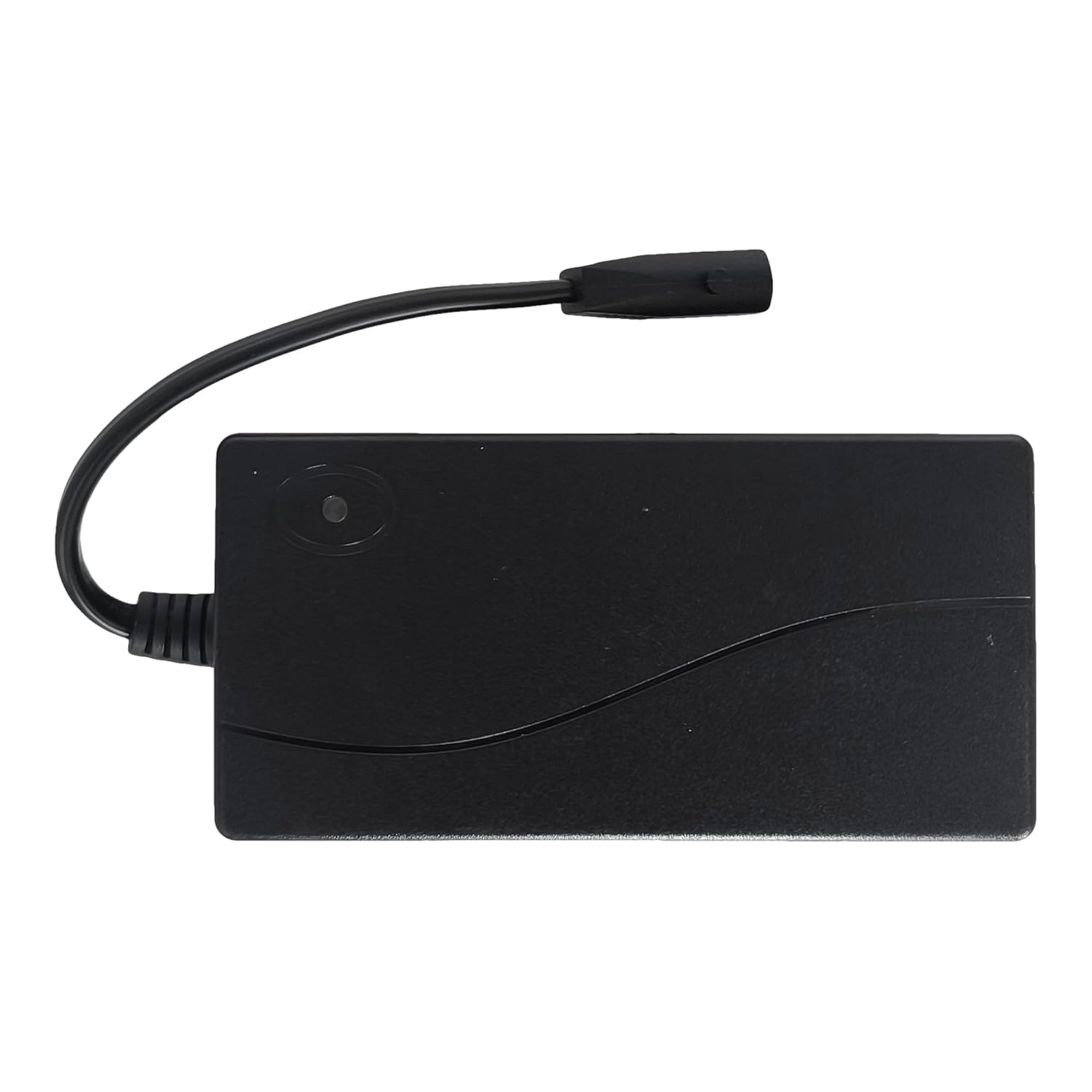

1x Power Recliner Power Supply

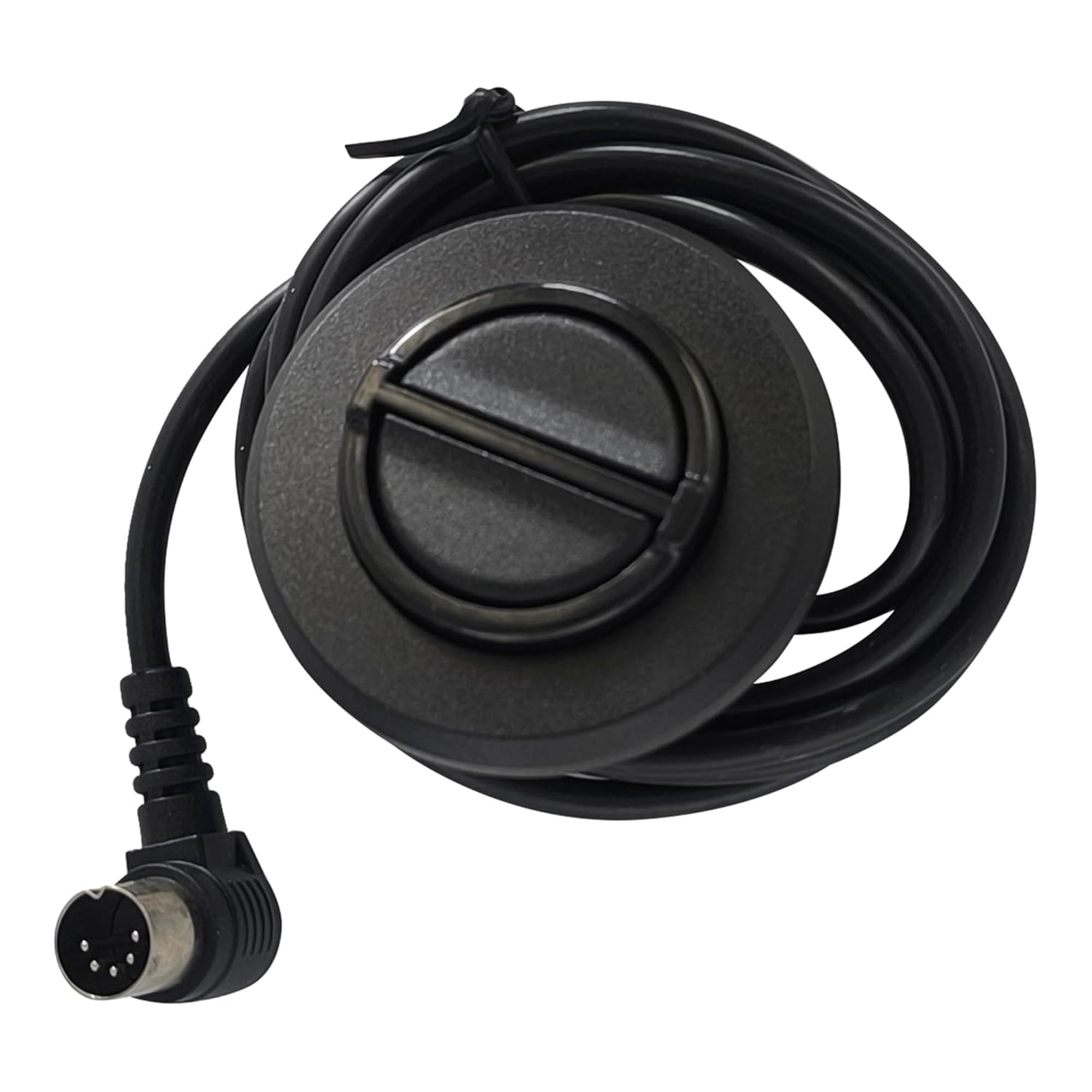

1x 4.9ft Length Power Recliner 2 Button 5 pin Round Hand Control

1x 6.6ft US Version AC Cable Cord

Package Dimensions: 24.8 x 7.0 x 4.0 inches

Item Weight:6.5 lb
