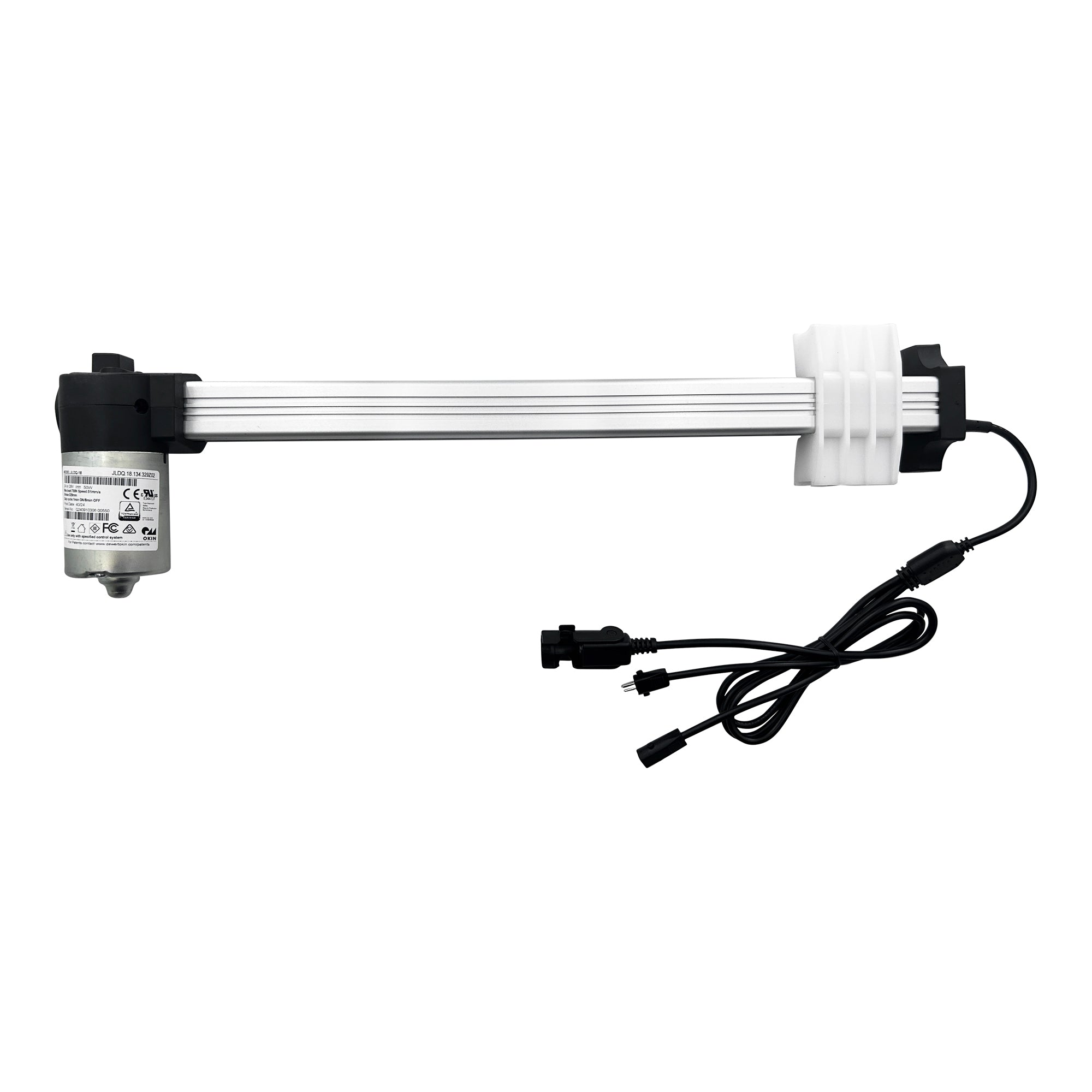

Fruhdi Power Recliner Lift Chairs Okin Motor Actuator Model JLDQ.18.134.329Z02 Replacement
- This is Power Recliner Okin Motor Model JLDQ.18.134.329Z02 Replacement
- The Motor can replce Okin Motor Model JLDQ.18.134.329Z02/Z03/Z05/Z06/Z08 and JLDQ.18.134.329D/Z
- Minimum install size:134 mm/5.28 inches, Stroke: 329 mm/ 12.30 inches
- 2 Pin Flat Round Male Plug Power Transformer Connection, 5 Pin Female Plug Hand Control Connection, 2 Pin FLat Round Female Plug Head Motor Connection
- Check Label and also troubleshoot the switch/remote or power supply before ordering a motor
- $94.99
- $94.99
- Unit price
- per
This is power recliner okin motor model JLDQ.18.134.329Z02 replacement. The motor can replce okin motor model JLDQ.18.134.329Z02/Z03/Z05/Z06/Z08 and JLDQ.18.134.329D/Z. It has 3 cables, the 2 pin flat round male plug connects to power transformer, the 5 pin female plug connects to hand control and the 2 pin flat round female plug connects to head motor.
If you are not sure if this the correct motor, please send us a picture of your current motor and we can tell you if this is the correct current replacement.
Technical data:
Model: JLDQ.18.134.329Z02
Stroke: 329 mm/ 12.30 inches
Minimum install size: 134 mm/5.28 inches
Product Dimensions：24.70 x 7.20 x 4.20 inches
Item Weight：3.90 lb
This is power recliner okin motor model JLDQ.18.134.329Z02 replacement. The motor can replce okin motor model JLDQ.18.134.329Z02/Z03/Z05/Z06/Z08 and JLDQ.18.134.329D/Z. It has 3 cables, the 2 pin flat round male plug connects to power transformer, the 5 pin female plug connects to hand control and the 2 pin flat round female plug connects to head motor.
If you are not sure if this the correct motor, please send us a picture of your current motor and we can tell you if this is the correct current replacement.
Technical data:
Model: JLDQ.18.134.329Z02
Stroke: 329 mm/ 12.30 inches
Minimum install size: 134 mm/5.28 inches
Product Dimensions：24.70 x 7.20 x 4.20 inches
Item Weight：3.90 lb
