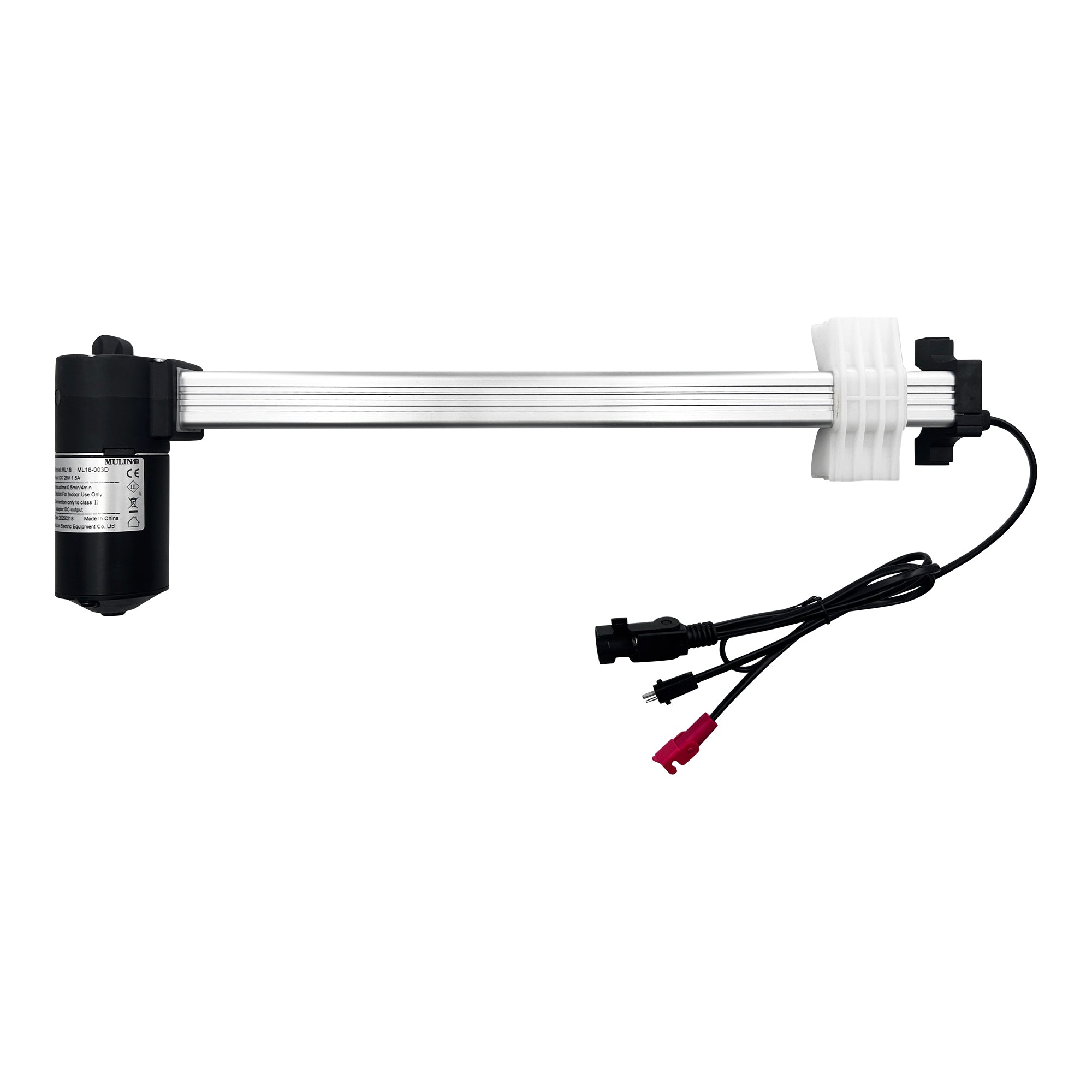

Fruhdi Power Recliner Mulin Motor Actuator Model ML8 ML8-003D Replacement Kit

The Motor Actuator Replacement Model ML8 ML8-003D motor applies to replace Mulin ml8-205B1, Okin jldq12.157.333k and Limoss 450917. Just application in electric sofa, massage chair and seat bed, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.

Technical data:

Model:ML8 ML8-003D

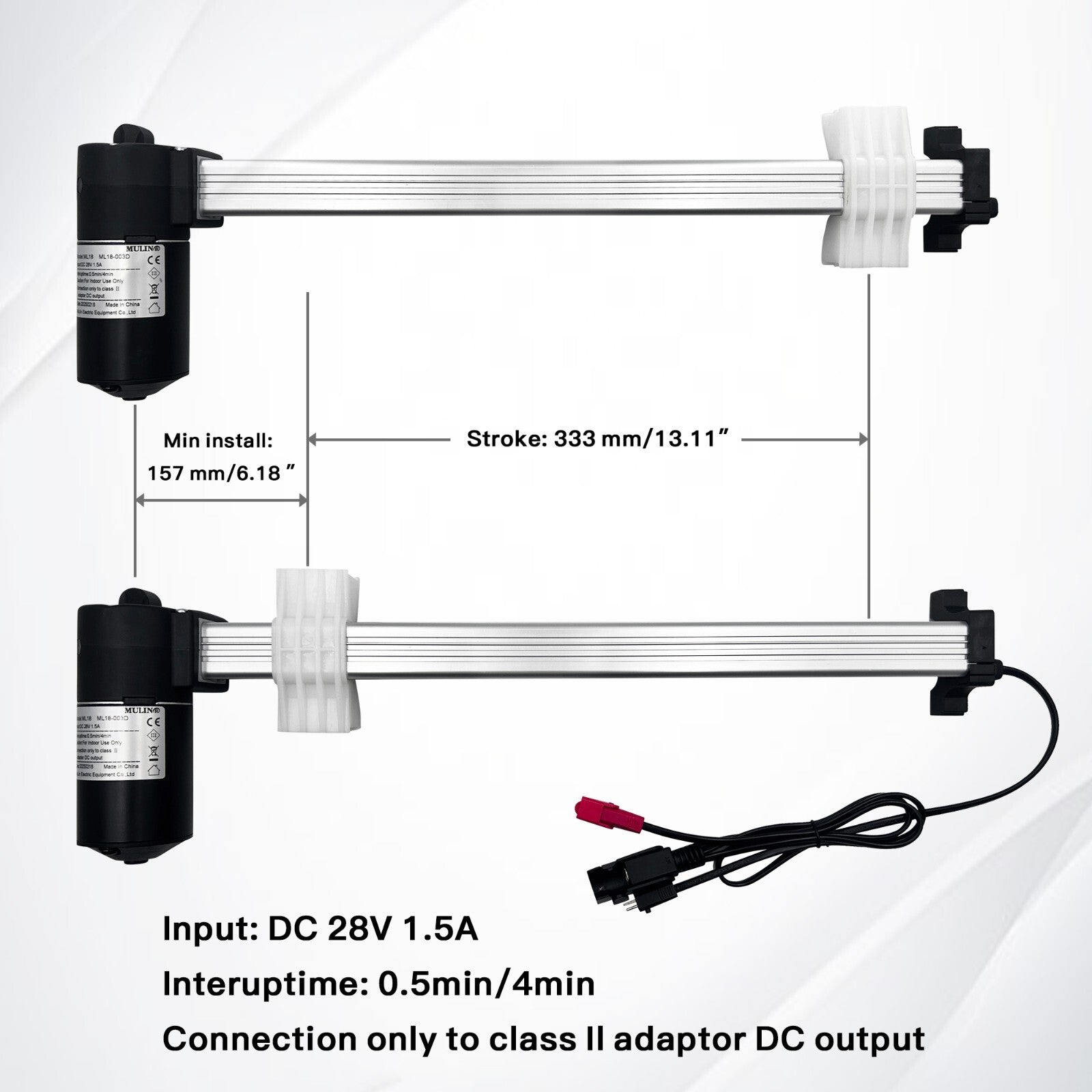

Stroke: 333mm/13.11inches

Minimum install dimension: 157mm/6.18inches

Max. Load: 800N

Input: DC 28V 1.5A

Interuptime: 0.5min/4min

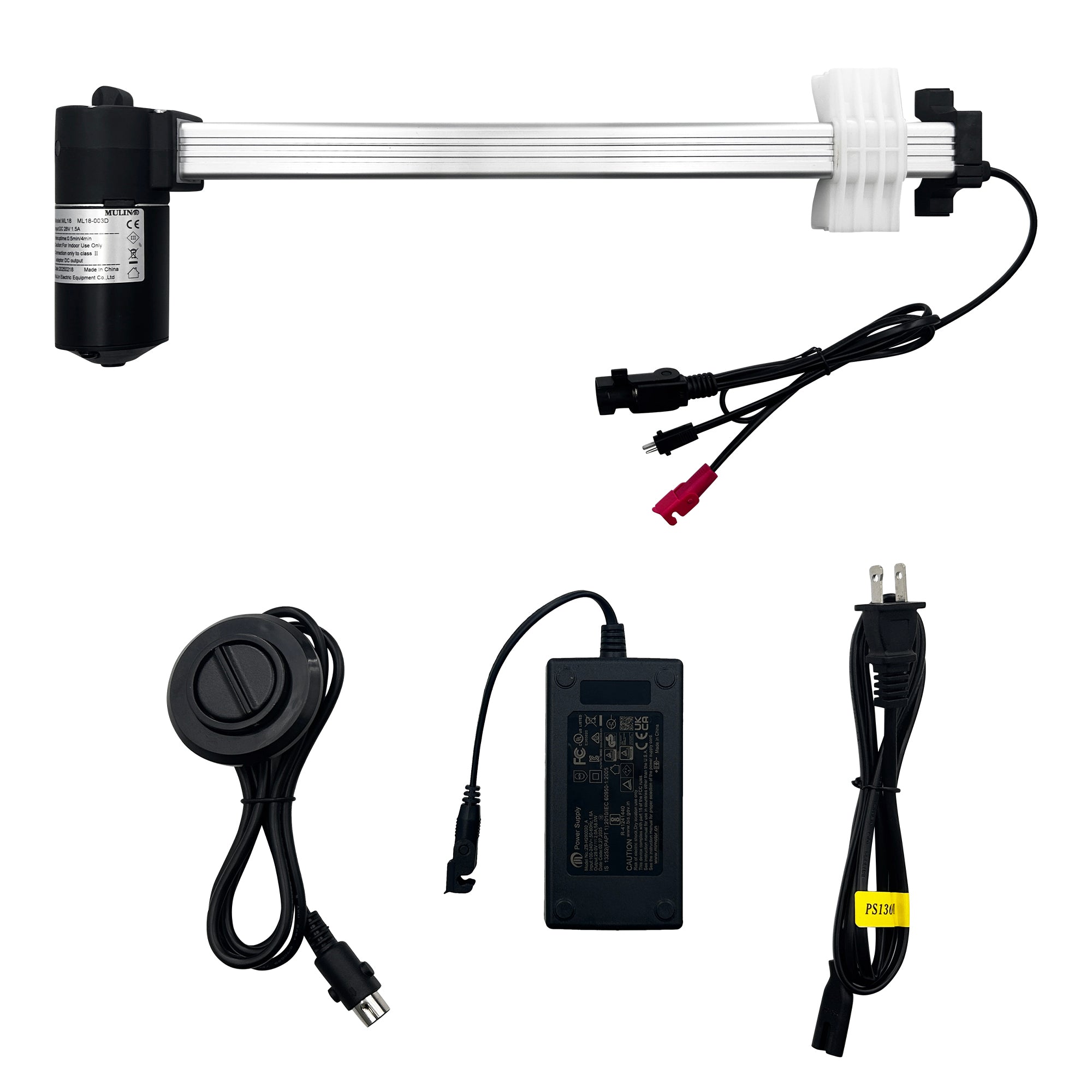

Package included :

1x Mulin Recliner Motor Actuator Replacement Model ML8 ML8-003D

1x Mulin 2 Button 5 Pin Switch Remote Control

1x Mulin Lift Chair Power Supply Replacement Transformer (Batteries not included)

1x Mulin 4.26 ft US Version AC Cable Cord

Package Dimensions: ‎25.00 x 7.00 x 4.00 inches

Package Weight: 5.00lb
