Fruhdi Power Recliner Sofa Lift Chairs Kaidi Motor Actuator Model KDPT007-113 Replacement Kit

The Linear Actuator can replace kaidi KDPT007-113 motor. This motor model KDPT007-113 can replace KDPT007-14, KDPT007-59, KDPT007-12 and KDPT007N-11 motor. And the Kaidi motor is full compatibility with original adapters and is tested to strict quality control standards. Just application in electric sofa, recliner chair, massage chair and seat bed, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.

Technical data:

Model: KDPT007-113

Stroke: 12.83”/326mm

Minimum install dimension: 5.47”/139mm

Speed: 14.1”/36mm/s

Rated Voltage: DC 29V

Reted Input: 75W

Max.load: 800N

UL Listed

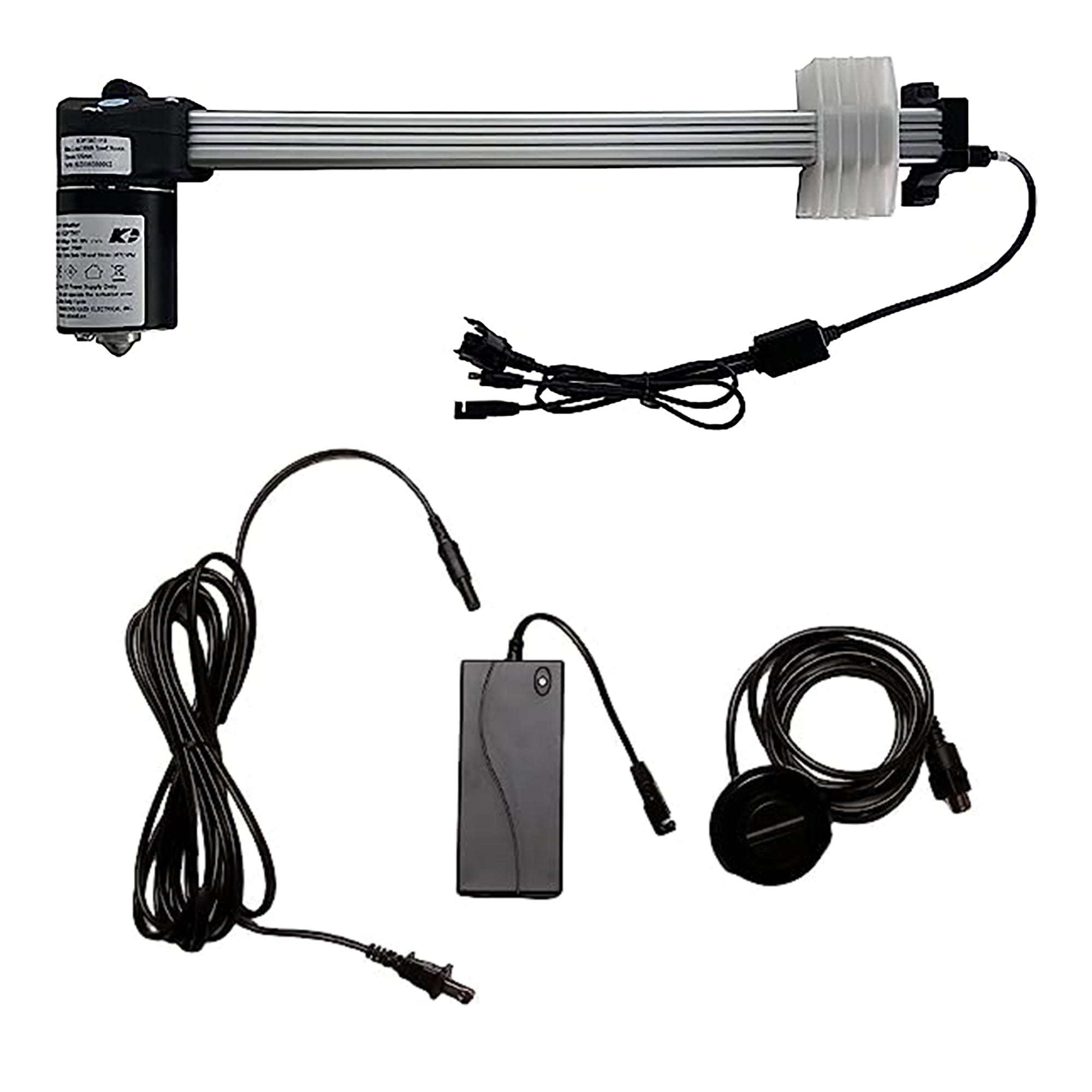

Package included :

1x Mulin Recliner Motor Actuator Replacement Model KDPT007-113

1x KD Round 2 Button 5 Pin Switch Remote Control

1x KD Lift Chair Power Supply Replacement Transformer Model kddy008b

1x KD US Version AC Cable Cord

Package Dimensions：20.8 x 6.8 x 2.8 inches

Item Weight：5.2lb
