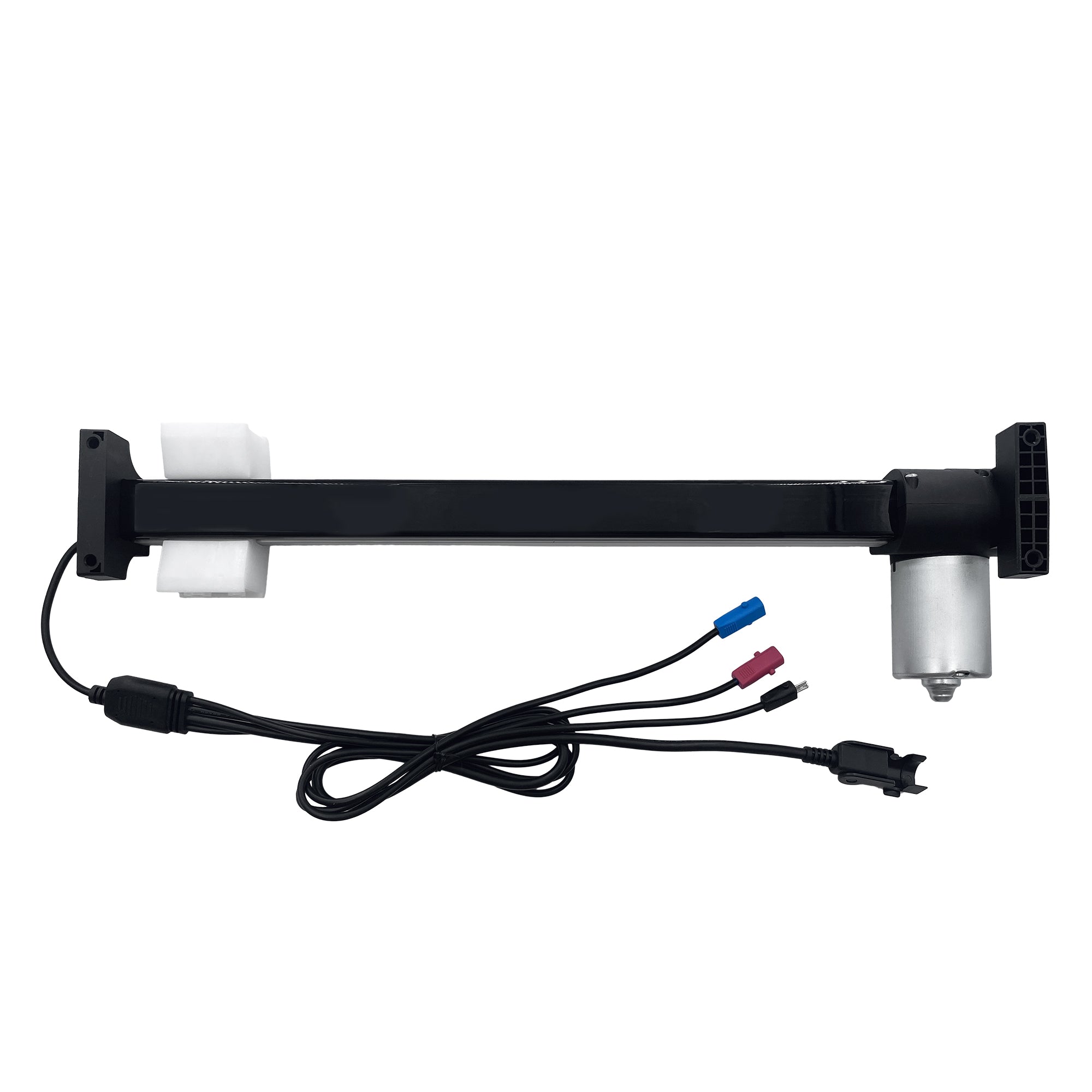

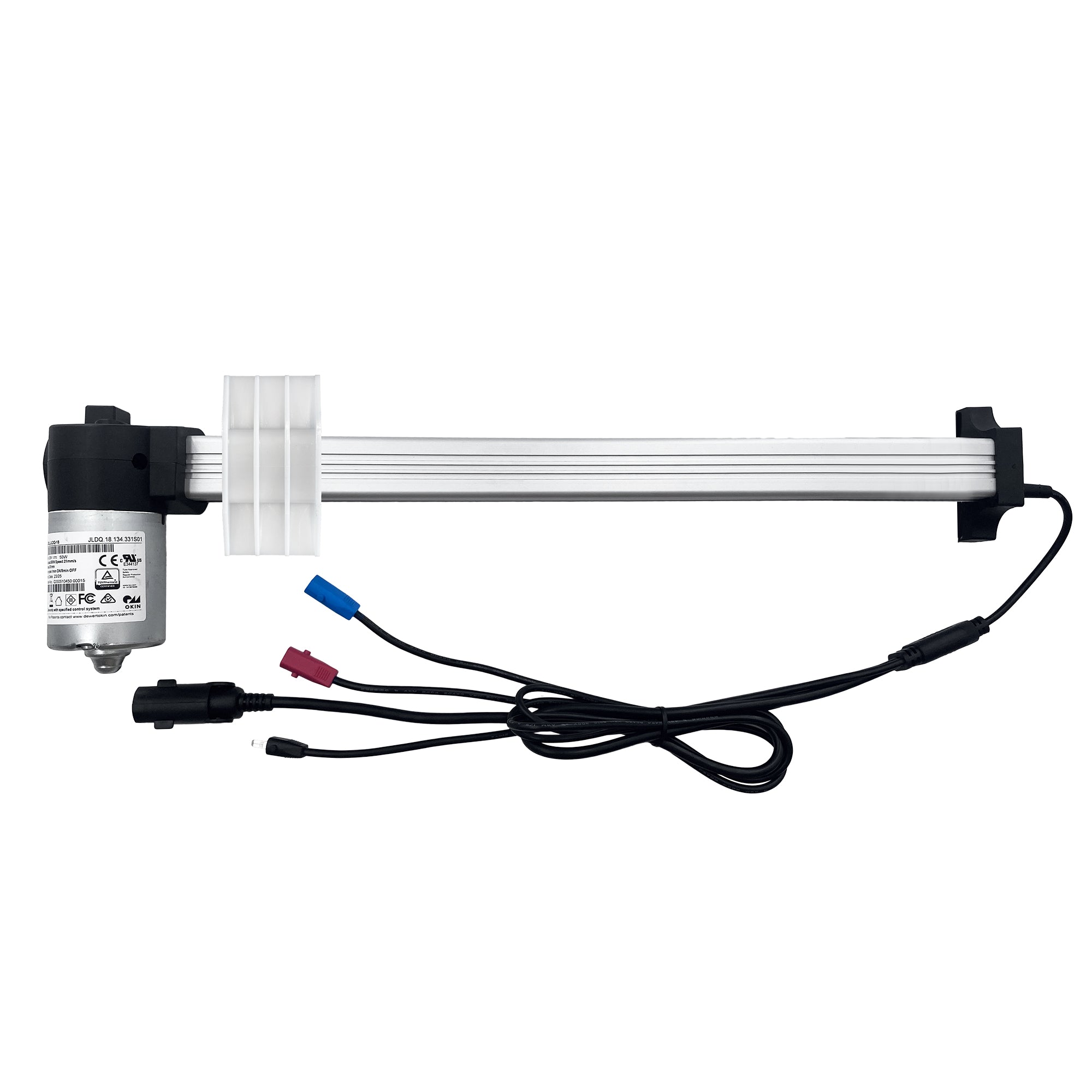

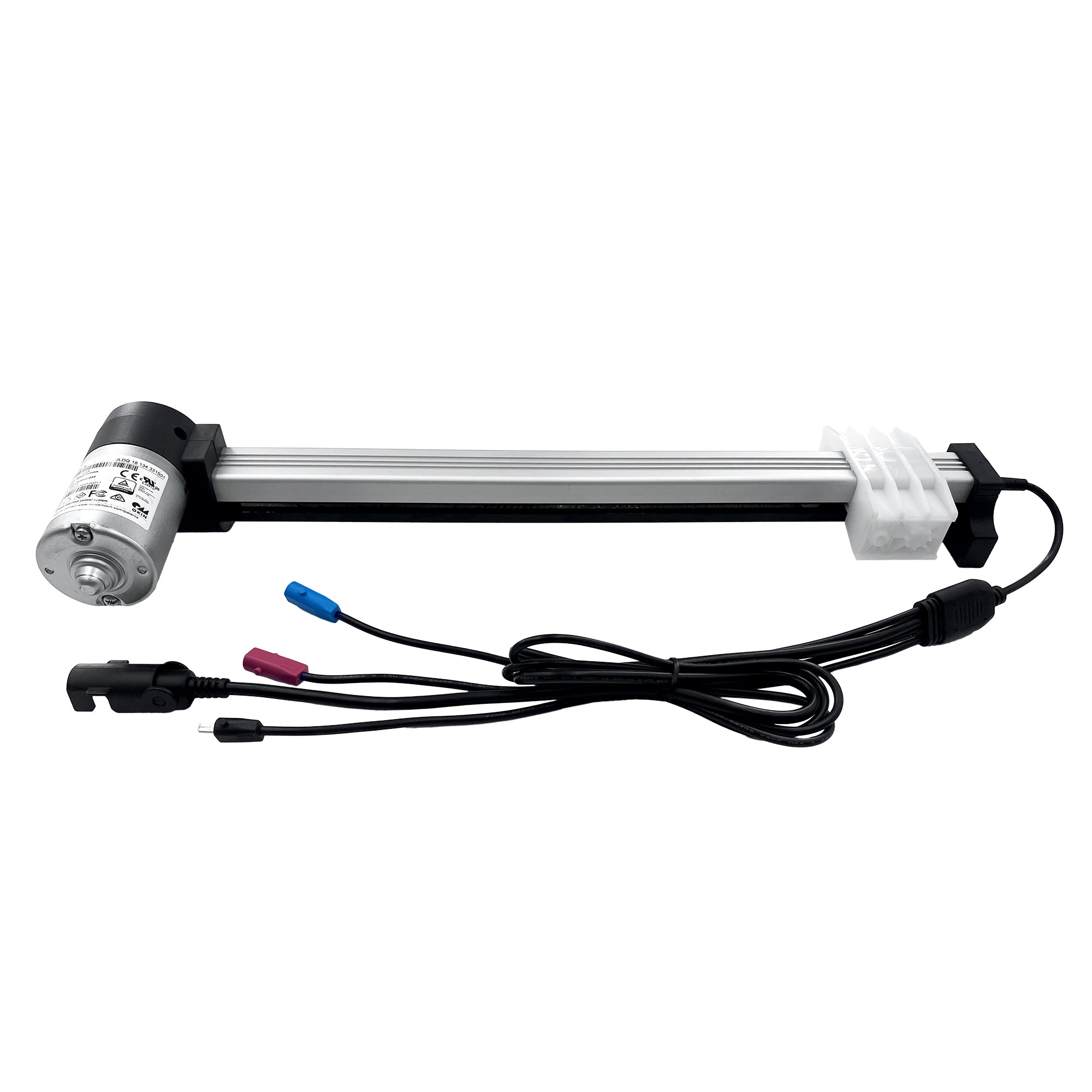

Motor Model JLDQ-18 JLDQ.18.134.331S01 Linear Actuator Replacement for Electric Sofa Lift Chairs Power Recliner
- This is Power Recliner Lift Chair Motor Model JLDQ.18.134.331S01 Replacement
- The Motor can replace Motor Model JLDQ.18.134.331S01

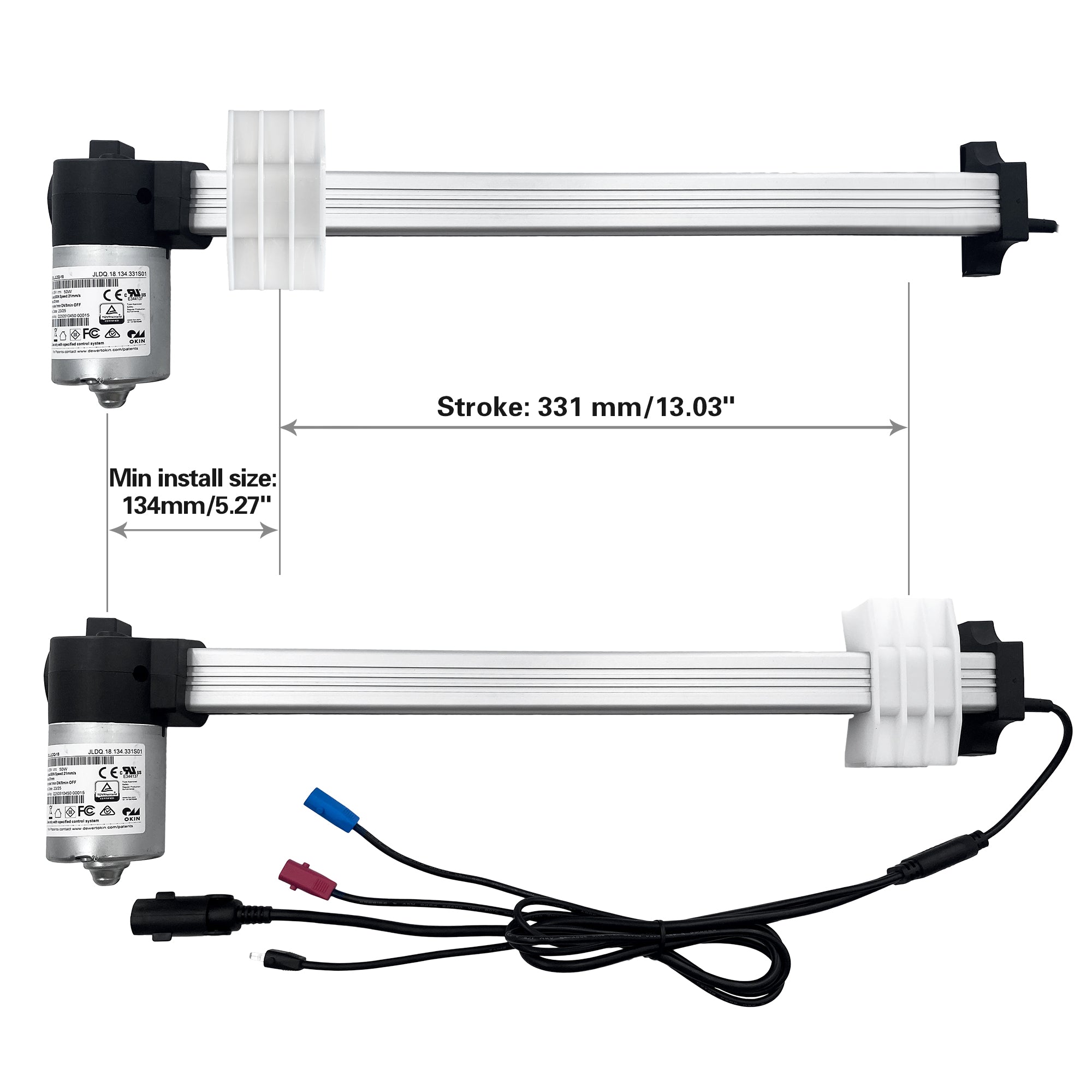

- Minimum install size:134 mm/5.28 inches, Stroke: 331 mm/ 13.03 inches

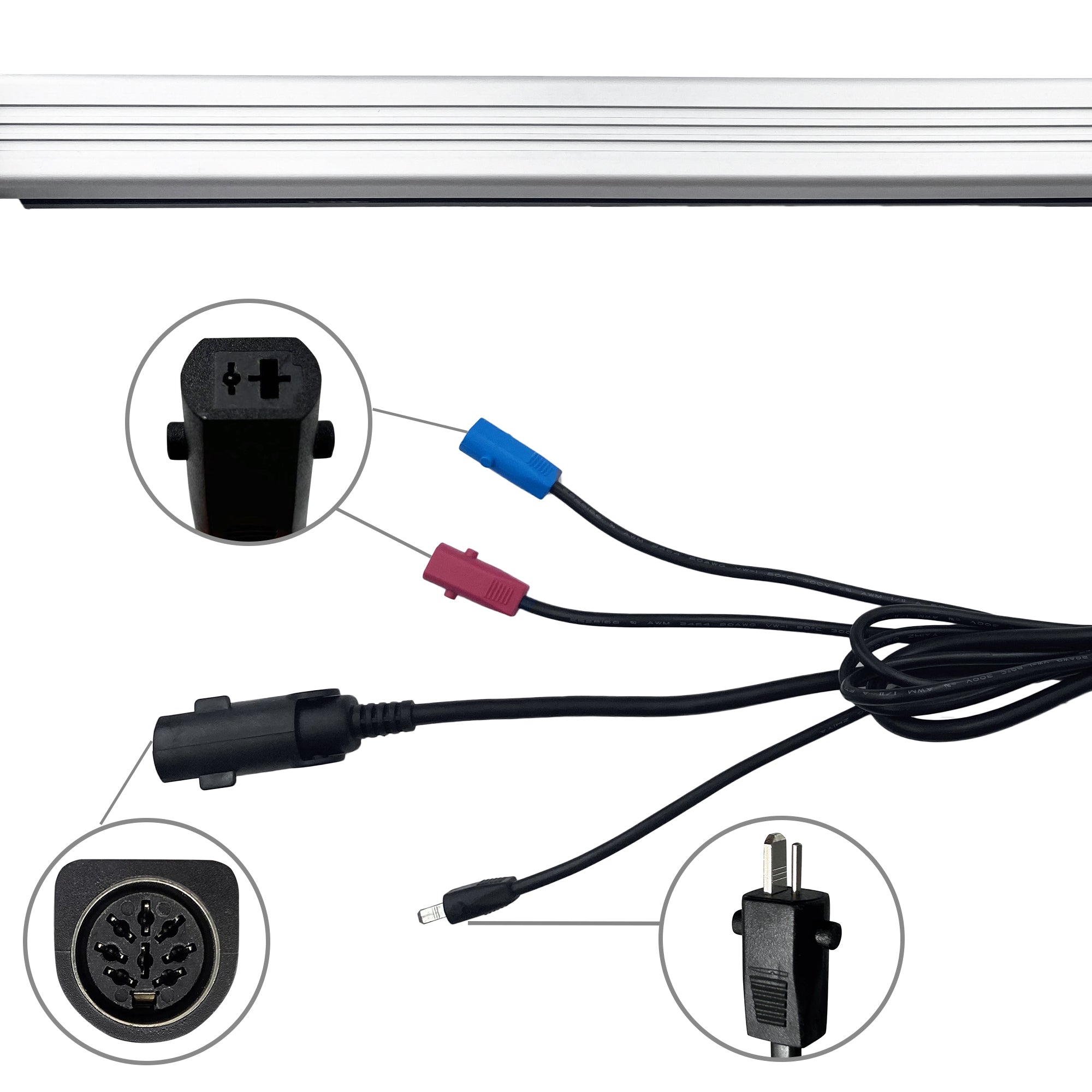

- 2 Pin Flat Round Male Plug Power Transformer Connection, 7 Pin Female Plug Hand Control Connection, 2*2 Pin FLat Round Female Plug Head Motor and Lumbar Connection
- Check Label and also troubleshoot the switch/remote or power supply before ordering the motor
- $99.99
- $99.99
- Unit price
- per
This is power recliner okin motor model JLDQ.18.134.331S01 replacement. It has 4 cables, the 2 pin flat round male plug connects to power transformer, the 7 pin female plug connects to hand control and the 2*2 pin flat round female plug connects to head motor and lumbar. Check label and also troubleshoot the switch/remote or power supply before ordering a motor.
Please Note: If you have any problems, please contact us first, we will solve it at the first time.
Technical data:

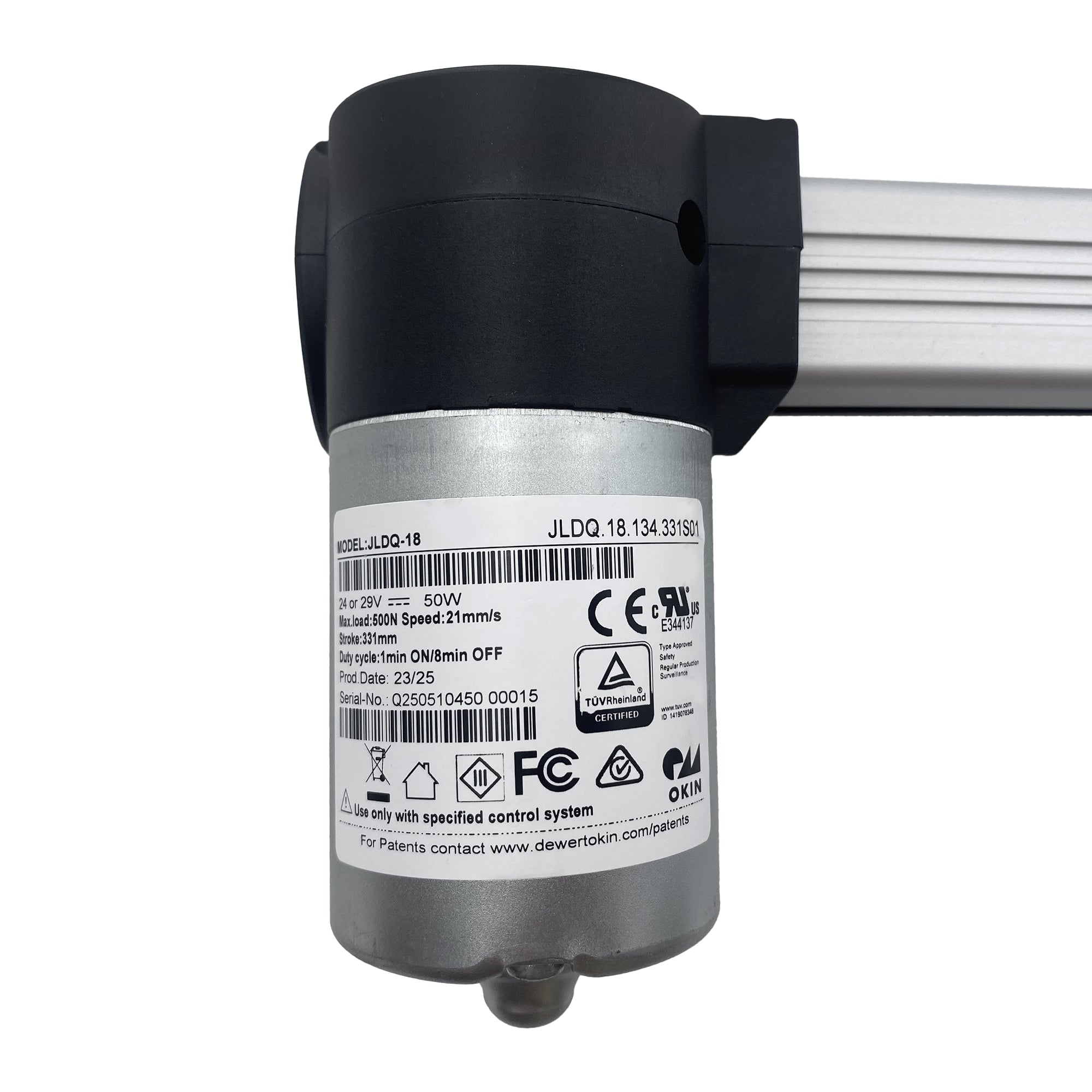

Model: JLDQ.18.134.331S01
Stroke: 331 mm/ 13.03 inches
Minimum install size: 134 mm/5.28 inches
Product Dimensions:24.80 x 7.00 x 4.20 inches
Item Weight: 4.0 lb
This is power recliner okin motor model JLDQ.18.134.331S01 replacement. It has 4 cables, the 2 pin flat round male plug connects to power transformer, the 7 pin female plug connects to hand control and the 2*2 pin flat round female plug connects to head motor and lumbar. Check label and also troubleshoot the switch/remote or power supply before ordering a motor.
Please Note: If you have any problems, please contact us first, we will solve it at the first time.
Technical data:
Model: JLDQ.18.134.331S01
Stroke: 331 mm/ 13.03 inches
Minimum install size: 134 mm/5.28 inches
Product Dimensions:24.80 x 7.00 x 4.20 inches
Item Weight: 4.0 lb
