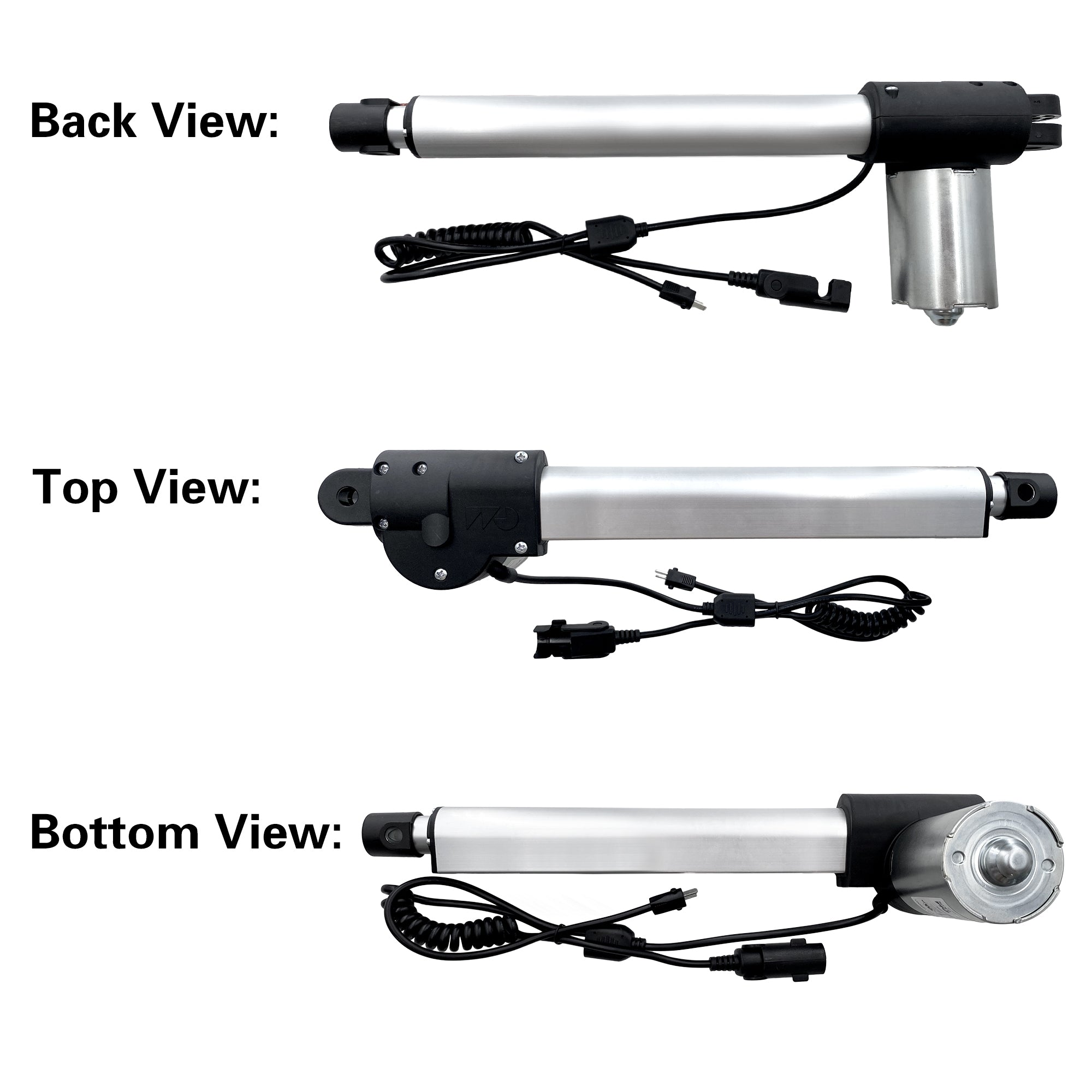

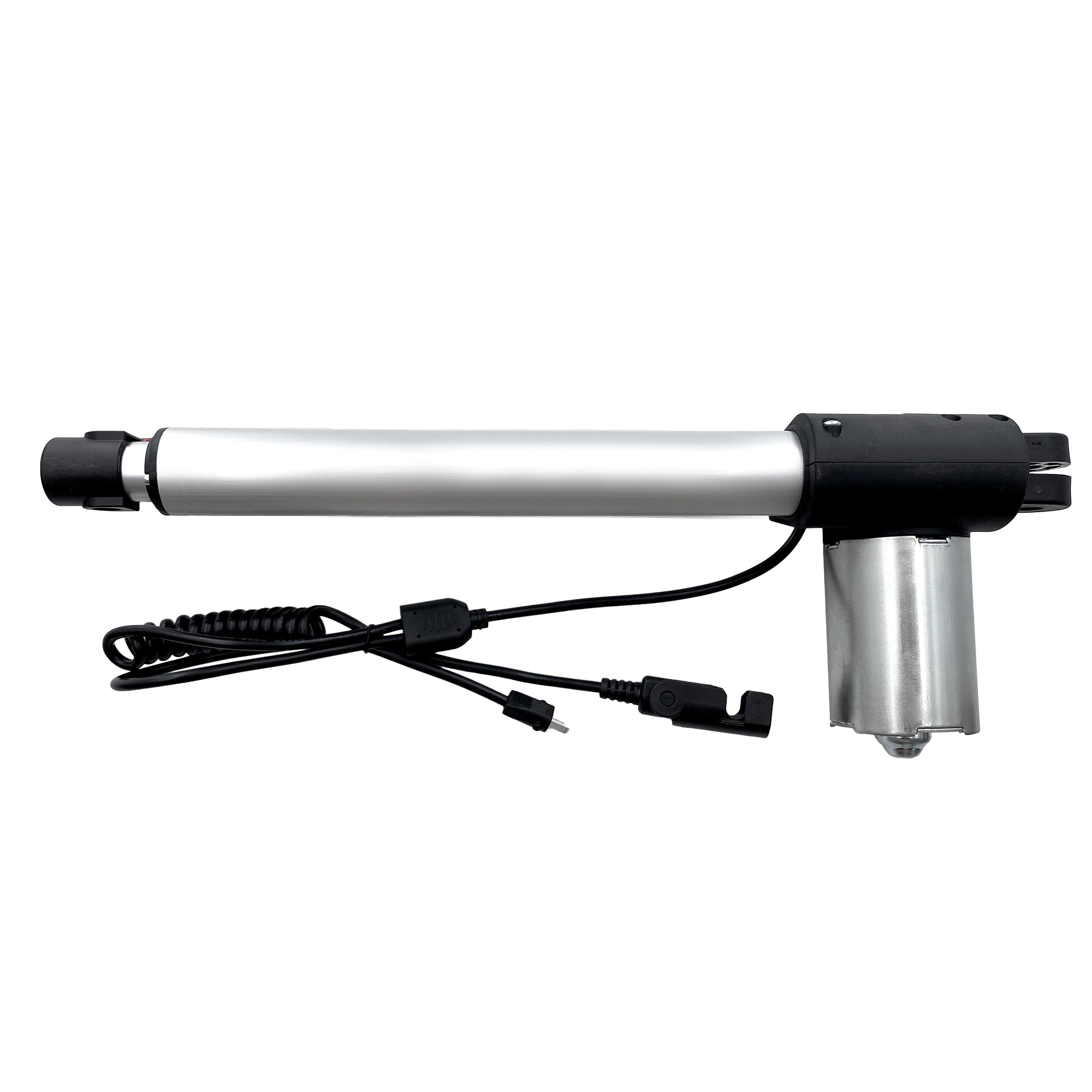

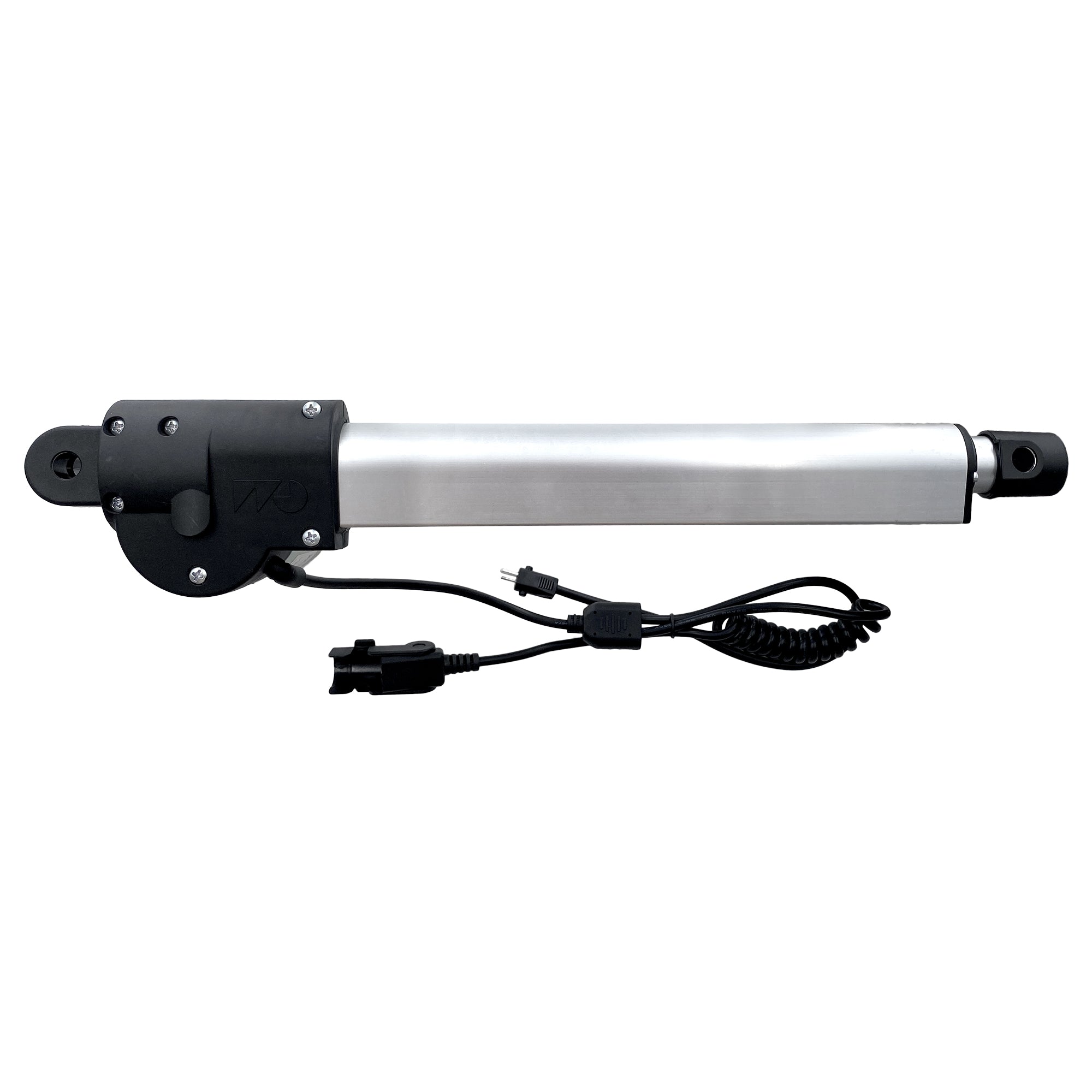

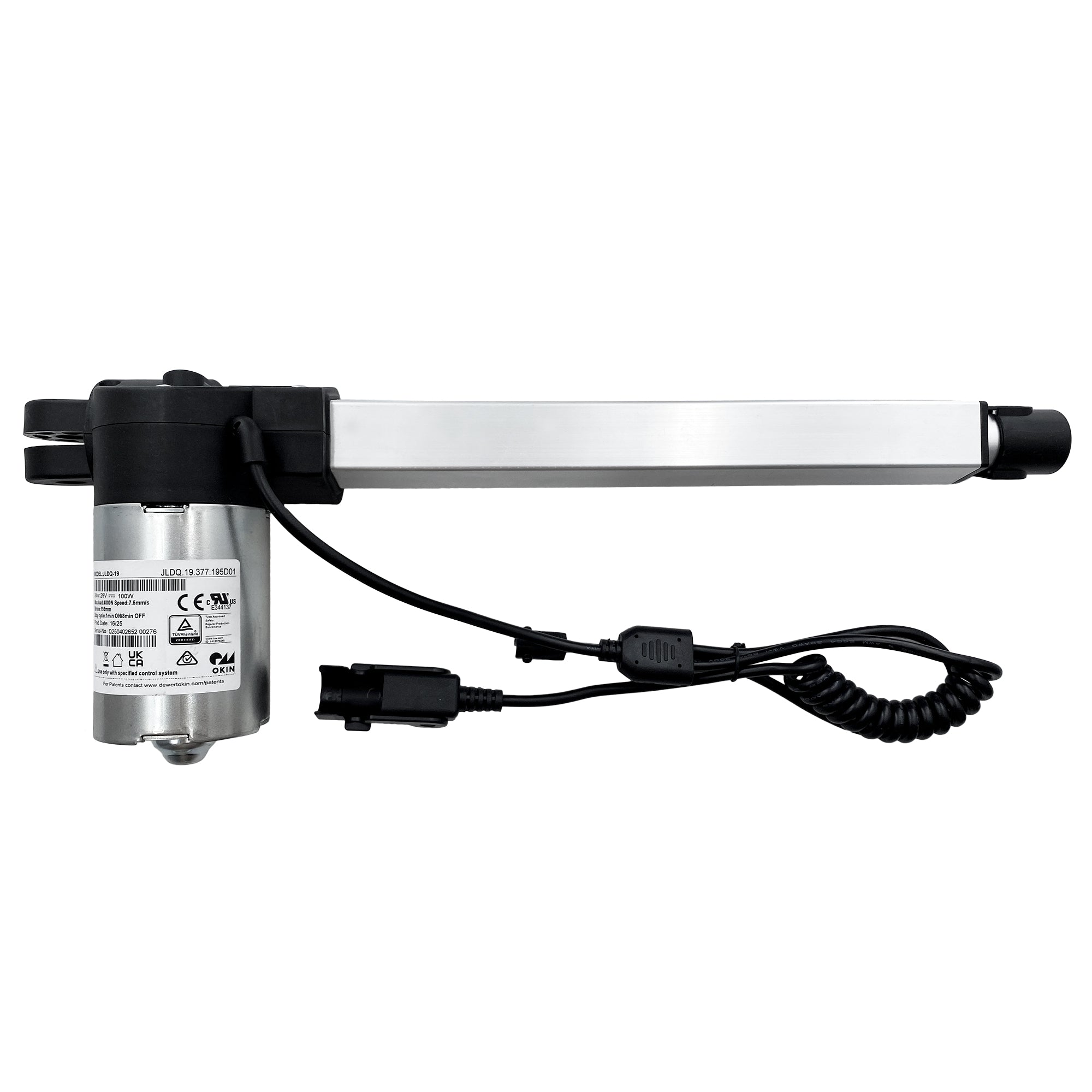

Okin Motor Model JLDQ.19.377.195D01 Linear Actuator Replacement for Electric Sofa Lift Chairs Power Recliner
- This is Power Recliner Lift Chair Linear Actuator Motor Model JLDQ.19.377.195D01 Replacement
- The Motor can replace Motor Model JLDQ.19.377.195D01

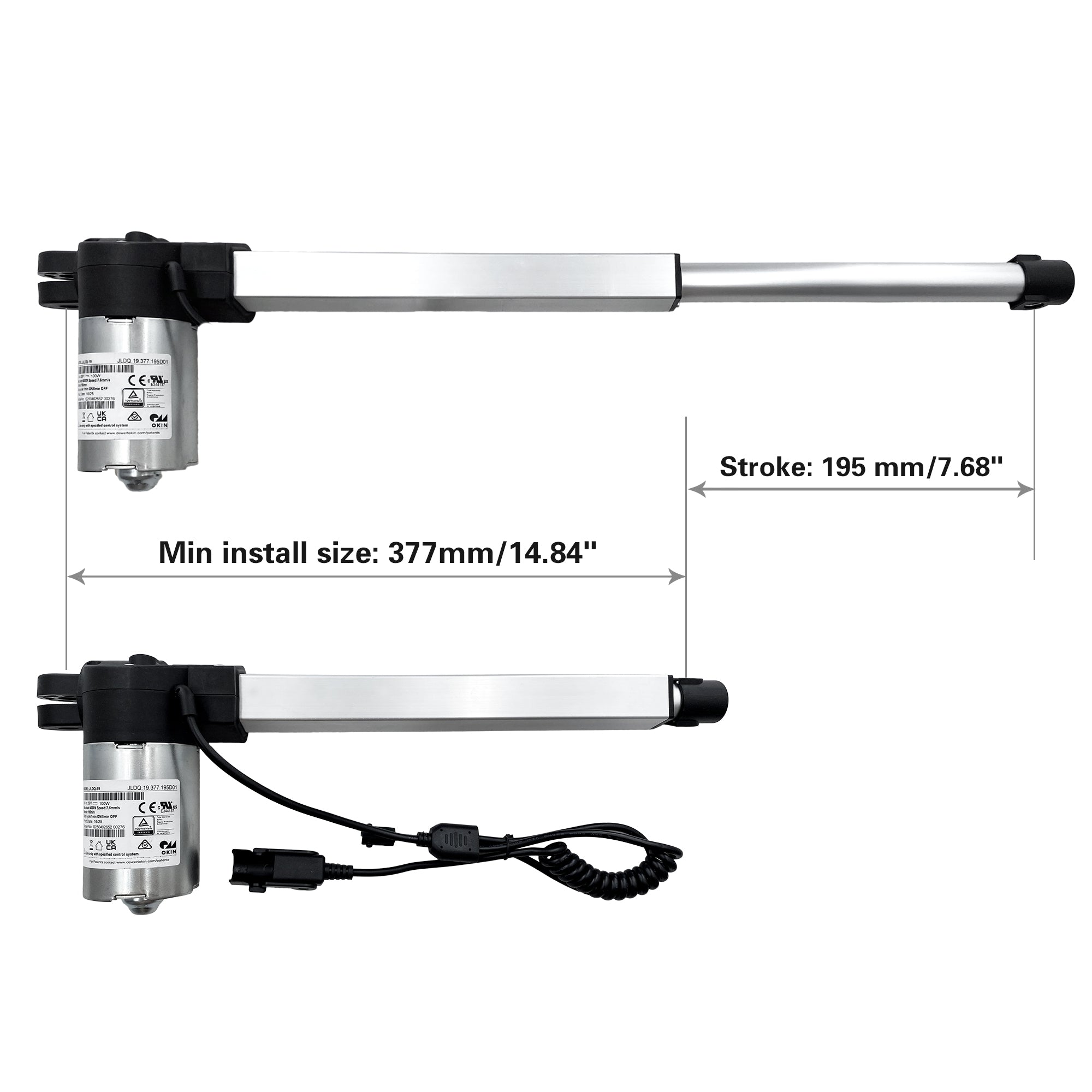

- Minimum install size: 377 mm/14.84 inches, Stroke: 195 mm/7.68 inches

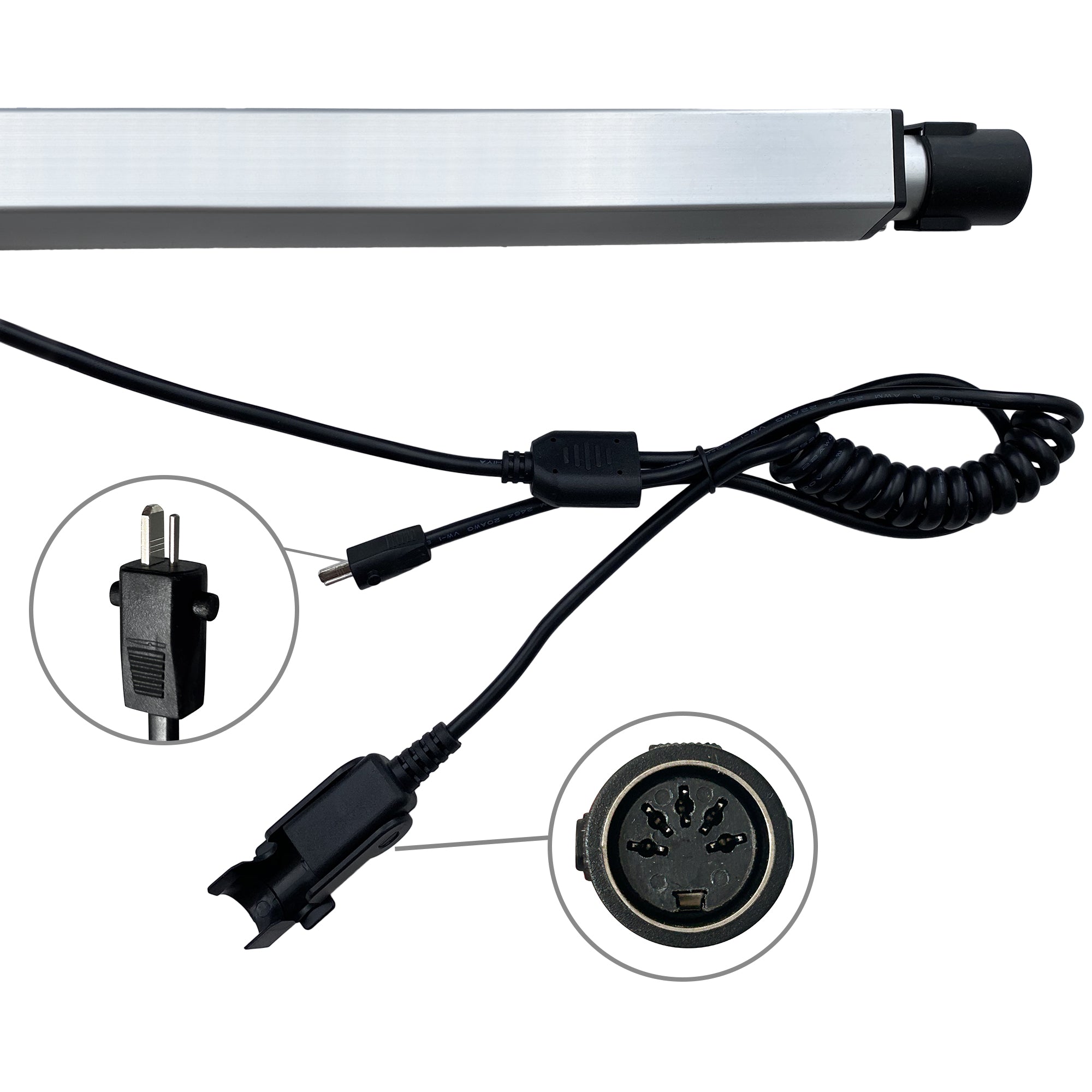

- 2 Pin Flat Round Male Plug Power Transformer Connection, 5 Pin Female Plug Hand Control Connection
- Check Label and also troubleshoot the switch/remote or power supply before ordering the motor
- $94.99
- $94.99
- Unit price
- per
This is power recliner okin motor model JLDQ.19.377.195D01 replacement. It has 2 cables, the 2 pin flat round male plug connects to power transformer and the 5 pin female plug connects to hand control.
Please note, if you are not sure if this the correct motor, please send us a photo of your original motor and we can tell you if this is the correct current replacement.

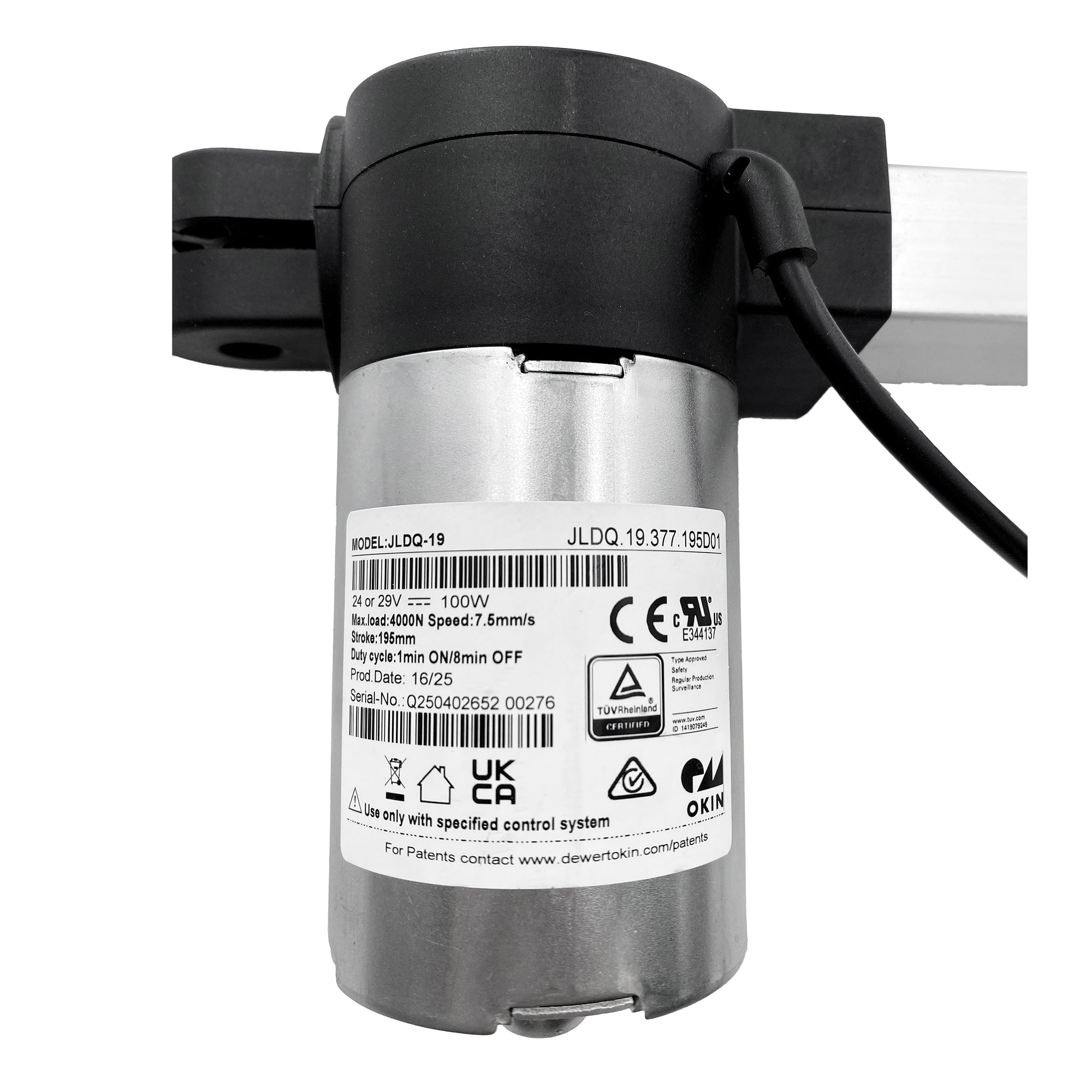

Technical data:
Minimum install size: 377 mm/14.84 inches
Stroke: 195 mm/7.68 inches
Max. Load: 4000N
Speed: 7.5mm/s
Package Dimensions: 24.8 x 6.9 x 4.3 inches;
Package Weight: 3.90 lb
This is power recliner okin motor model JLDQ.19.377.195D01 replacement. It has 2 cables, the 2 pin flat round male plug connects to power transformer and the 5 pin female plug connects to hand control.
Please note, if you are not sure if this the correct motor, please send us a photo of your original motor and we can tell you if this is the correct current replacement.
Technical data:
Minimum install size: 377 mm/14.84 inches
Stroke: 195 mm/7.68 inches
Max. Load: 4000N
Speed: 7.5mm/s
Package Dimensions: 24.8 x 6.9 x 4.3 inches;
Package Weight: 3.90 lb
