Power Recliner Mulin Motor ML8-310B Kit Replacing ML18-006 006A Actuator Replacement for Electric Sofa Lift Chairs

The mulin motor actuator model ML8 ML8-310 310B can replace ML18-006 006A and Ml18-100 motors. There are 3 Cable Connections in the front of the motor, 2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection and Sub-motor connection cable. Just application in electric sofa, massage chair and seat bed, check label of your orginal motor and also troubleshoot the switch/remote or power supply before ordering a motor.

Technical data:

Model:ML8 ML8-310B

Stroke:200mm/7.87 inches

Minimum install dimension:157mm/6.18 inches

Input voltage: 29V DC

Input: DC 28V 1.5A

Max Push / Pull Force: 800N

Speed: 18mm/s

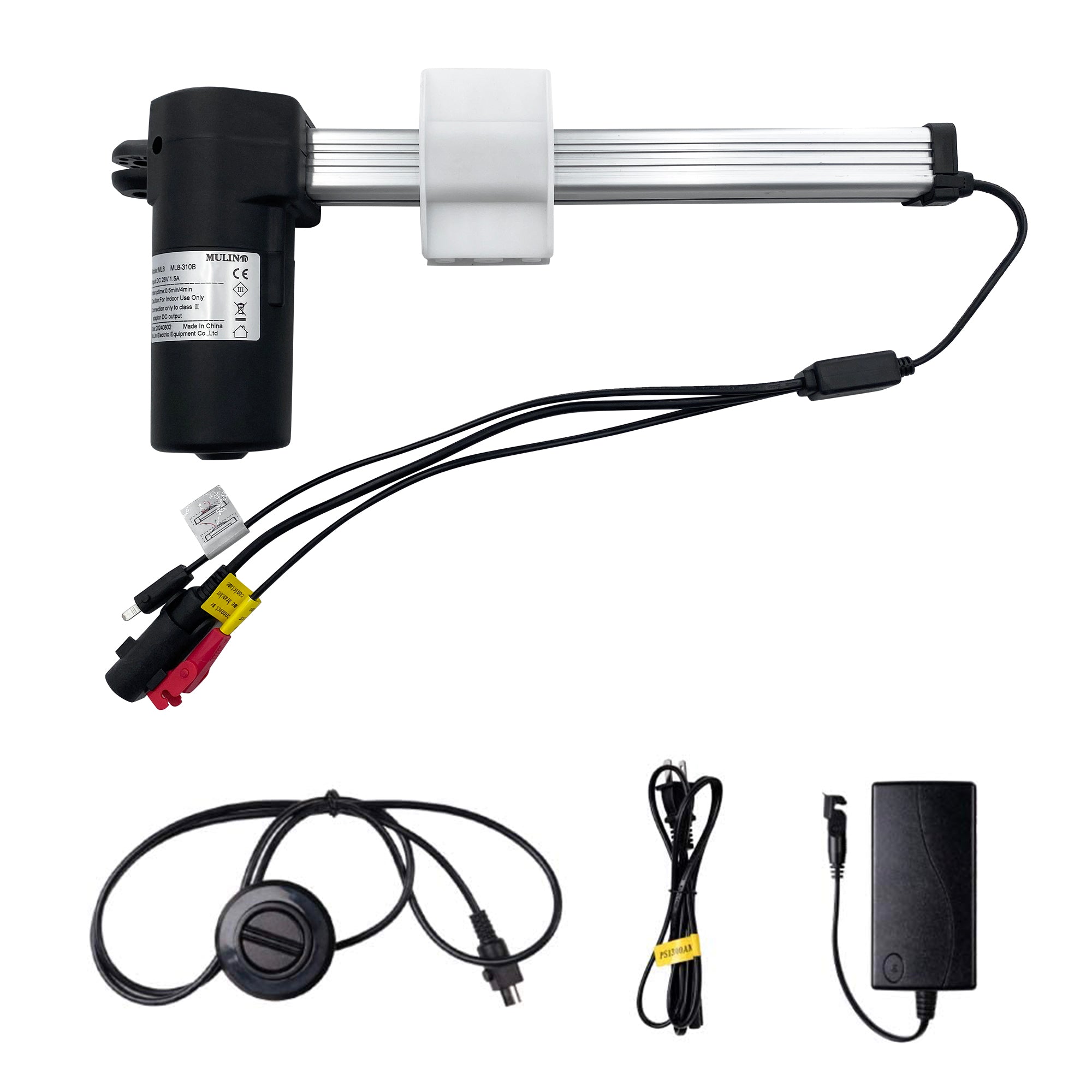

Package included :

1x Mulin Recliner Motor Actuator Replacement Model ML8 ML8-310B

1xMulin Round 2 Button 5 Pin Switch Remote Control

1x Mulin Lift Chair Power Supply Replacement Transformer Kit (Batteries not included)

1x Mulin 4.26 ft US Version AC Cable Cord

Package Dimensions: 24.8 x 6.7 x 3.9 inches

Item Weight: 5 lb
